RR4 RADIO-RANGE STATION DATA

RADIO-RANGE STATION DATA: 2007/05/04 db

A listing of the Low Frequency Radio-Range Stations
currently installed in the "LF Range" scenery.

All Leg Azimuths are shown corrected for each
Radio-Range Station Local Magnetic Variation, from
the actual data date to Flight Simulator 9 values.

Terms and Abbreviations:

Climbing Left Turn		CLT
Climbing Right Turn		CRT
direct				dct
Final Approach Fix		FAF
from				fm
Left Procedure Turn		LPT
Microsoft FS9 Variation 	MagVar
Missed Approach Point		MAP
Minimum Descent Altitude	MDA
Minimum Safe Altitude		MSA
outbound			outbnd
Right Procedure Turn		RPT
*-------------------------------------------------

`ABBOTSFORD BC`	`ABERDEEN, SD`	`ABILENE, TX`
`ADAK`	`ADVANCE, MO`	`AISHIHIK YT`
`AKRON, CO`	`AKRON, OH`	`ALBANY, GA`
`ALBANY, NY`	`ALBUQUERQUE, NM`	`ALEXAI POINT`
`ALEXANDRIA, LA`	`ALICE, TX`	`ALLENTOWN, PA`
`ALMA, GA`	`ALTOONA, PA`	`AMARILLO, TX`
`AMCHITKA`	`ANCHORAGE`	`ANIAK`
`ANNETTE ISLAND`	`ARMSTRONG ON`	`ASHFORK, AZ`
`ATKA`	`ATLANTA, GA`	`ATTU`
`AUGUSTA, GA`	`AUGUSTA, ME`	`AUSTIN, TX`
`BAKER, OR`	`BAKERSFIELD, CA`	`BALTIMORE, MD`
`BANGOR, ME`	`BELLEFONTE, PA`	`BELLINGHAM, WA`
`BETHEL`	`BETTLES`	`BIG DELTA`
`BILLINGS, MT`	`BIRCHWOOD`	`BIRMINGHAM, AL`
`BISMARCK, ND`	`BLACKSTONE, VA`	`BLYTHE, CA`
`BOISE, ID`	`BOSTON, MA`	`BOZEMAN, MT`
`BROADVIEW SK`	`BROWNSVILLE, TX`	`BRYAN, TX`
`BUCKSTOWN, PA`	`BUFFALO, NY`	`BURLEY, ID`
`BURLINGTON, IA`	`BURLINGTON, VT`	`BUTTE, MT`
`CALCUTTA India`	`CALGARY AB`	`CAPE HARRISON LB`
`CAPE KHLEBNIKOF`	`CARMI BC`	`CASPER, WY`
`CASTLEGAR BC`	`CHABUA India`	`CHANUTE, KS`
`CHARLESTON, SC`	`CHARLOTTE, NC`	`CHARLOTTETOWN PEI`
`CHATTANOOGA, TN`	`CHERRY POINT, NC`	`CHEYENNE, WY`
`CHICAGO, IL`	`CHIRIKOF ISLAND`	`CINCINNATI, OH`
`CLEAR CREEK ON`	`CLEVELAND, OH`	`COLUMBIA, MO`
`COLUMBIA, SC`	`COLUMBUS, OH`	`COMOX BC`
`CONCORD, NH`	`COPPER LAKE NS`	`CORDOVA RADIO`
`CORDOVA RANGE`	`CORPUS CHRISTI, TX`	`COWLEY AB`
`CRANBROOK BC`	`CRESTVIEW, FL`	`CROSS CITY, FL`
`DAGGETT, CA`	`DALLAS, TX`	`DARTMOUTH NS`
`DAYTON, OH`	`DAYTONA BEACH, FL`	`DELTA, UT`
`DENVER, CO`	`DES MOINES, IA`	`DETROIT, MI`
`DICKINSON, ND`	`DOTHAN, AL`	`DUBOIS, ID`
`DULUTH, MN`	`DUTCH`	`EARLTON JUNCTION ON`
`EDMONTON AB`	`EL CENTRO, CA`	`EL MORRO, NM`
`EL PASO, TX`	`ELKINS, WV`	`ELKO, NV`
`ELLENSBURG, WA`	`ELMIRA, NY`	`ENTERPRISE, UT`
`EPHRATA, WA`	`ERIE, PA`	`EUGENE, OR`
`FAIRBANKS`	`FAREWELL`	`FARGO, ND`
`FLORENCE, SC`	`FORT CHIMO PQ Crystal One`	`FORT JONES, CA`
`FORT NELSON BC`	`FORT ST JOHN BC`	`FORT WILLIAM ON`
`FREDERICTON NB`	`FRESNO, CA`	`FRONT ROYAL, VA`
`FT MYERS, FL`	`FT WAYNE, IN`	`FT WORTH, TX`
`GAGE, OK`	`GALENA`	`GANDER NF`
`GARDEN CITY, KS`	`GAYA India`	`GILA BEND, AZ`
`GLENN`	`GOOSE BAY NF`	`GORDONSVILLE, VA`
`GOSHEN, IN`	`GRAND ISLAND, NE`	`GRAND PRAIRIE AB`
`GRAND RAPIDS, MI`	`GREAT FALLS, MT`	`GREENSBORO, NC`
`GREENWOOD NS`	`GULKANA`	`GUSTAVUS`
`HARRISBURG, PA`	`HARTFORD, CT`	`HAYES CENTER, NE`
`HELENA, MT`	`HILO HI`	`HONOLULU HI`
`HOUSTON, TX`	`HUNTINGTON, WV`	`HURON, SD`
`HUTCHINSON, KS`	`ILIAMNA`	`INDIANAPOLIS, IN`
`JACKSON, MS`	`JACKSONVILLE, FL`	`JOLIET, IL`
`KANSAS CITY, MO`	`KAPUSKASING ON`	`KARACHI India`
`KENAI`	`KENORA ON`	`KEY WEST, FL`
`KILLALOE ON`	`KINGMAN, AZ`	`KISKA`
`KLAMATH FALLS, OR`	`KNOXVILLE, TN`	`KODIAK`
`KUNMING China`	`LA GUARDIA, NY`	`LACROSSE, WI`
`LAKE CHARLES, LA`	`LALMANIR HAT India`	`LANSING, MI`
`LARAMIE, WY`	`LAS VEGAS, NV`	`LETHBRIDGE AB`
`LEWISTOWN, MT`	`LITTLE ROCK, AR`	`LIVINGSTON, MT`
`LONDON ON`	`LONG BEACH, CA`	`LOS ANGELES, CA`
`LOUISVILLE, KY`	`LUBBOCK, TX`	`LYNCHBURG, VA`
`MARFA, TX`	`MARTINSBURG, WV`	`MAUI HI`
`MAXWELL, AL`	`MCGRATH`	`MECATINA PQ`
`MEDFORD, OR`	`MEDICINE HAT AB`	`MEGANTIC PQ`
`MELBOURNE, FL`	`MEMPHIS, TN`	`MERIDIAN, MS`
`MIAMI, FL`	`MILES CITY, MT`	`MILFORD, UT`
`MILLINOCKET, ME`	`MILWAUKEE, WI`	`MINCHUMINA`
`MINGAN PQ`	`MINNEAPOLIS, MN`	`MISSOULA, MT`
`MOBILE, AL`	`MODESTO, CA`	`MOLINE, IL`
`MONCTON NB`	`MONT JOLI PQ`	`MONTREAL PQ`
`MOSES POINT`	`MUSCLE SHOALS, AL`	`MUSKOKA ON`
`NAKINA ON`	`NANAIMO CASSIDY BC`	`NARSARSSUAQ BW1`
`NASHVILLE, TN`	`NEAH BAY, WA`	`NENANA`
`NEW ORLEANS, LA`	`NEWARK, NJ`	`NEWHALL, CA`
`NOME`	`NORTH BAY ON`	`NORTH DALLES, OR`
`NORTH PLATTE, NE`	`NORTH SHORE`	`NORTHWAY`
`OAKLAND, CA`	`OGDEN, UT`	`OKLAHOMA CITY, OK`
`OMAHA, NE`	`OTTAWA ON`	`PAGWA ON`
`PALMDALE, CA`	`PATRICIA BAY BC`	`PEMBINA, MN`
`PENDLETON, OR`	`PENNFIELD RIDGE NB`	`PENSACOLA, FL`
`PENTICTON BC`	`PHILADELPHIA, PA`	`PHOENIX, AZ`
`PIERRE, SD`	`PITTSBURGH, PA`	`POCATELLO, ID`
`PORQUIS JUNCTION ON`	`PORT ALLEN HI`	`PORT HARDY BC`
`PORTLAND, ME`	`PORTLAND, OR`	`PRESQUE ISLE, ME`
`PRINCE GEORGE BC`	`PRINCETON BC`	`PT BARROW`
`PUEBLO, CO`	`QUEBEC PQ`	`QUESNEL BC`
`RALEIGH, NC`	`RANDALL`	`RAPID CITY, SD`
`RED BLUFF, CA`	`REDMOND, OR`	`REGINA SK`
`RENO, NV`	`RICHMOND, VA`	`RIVERS MB`
`RIVERSIDE, CA`	`ROANOKE, VA`	`ROCK SPRINGS, WY`
`ROCKFORD, IL`	`RODEO, NM`	`ROSWELL, NM`
`SACRAMENTO, CA`	`SAINT JOHN NB`	`SALT LAKE CITY, UT`
`SAN ANTONIO, TX`	`SAN DIEGO, CA`	`SAN FRANCISCO, CA`
`SANAK`	`SAND POINT`	`SAULT STE MARIE ON`
`SAVANNAH, GA`	`SEATTLE, WA`	`SEVEN ISLANDS PQ`
`SHEMYA`	`SHERIDAN, WY`	`SHREVEPORT, LA`
`SILVER LAKE, CA`	`SINCLAIR, WY`	`SIOUX FALLS, SD`
`SIOUX LOOKOUT ON`	`SITKA`	`SKWENTNA`
`SMITH'S GROVE, KY`	`SMITHVILLE, TN`	`SNAG YT`
`SOUTH BEND, IN`	`SPARTANBURG, SC`	`SPOKANE, WA`
`SPRING BLUFF, MO`	`SPRINGFIELD, IL`	`SPRINGFIELD, MO`
`ST. LOUIS, MO`	`STEPHENVILLE NF`	`STEWART FIELD, NY`
`STIRLING ON`	`STORNOWAY EGPO`	`SUMMIT`
`SWIFT CURRENT SK`	`SYDNEY NS`	`SYRACUSE, NY`
`TALLAHASSEE, FL`	`TAMPA, FL`	`TANACROSS`
`TANAGA`	`TESLIN YT`	`TEXARKANA, AR`
`TEZPUR India`	`TORONTO ON`	`TRAVERSE CITY, MI`
`TRI CITIES, TN`	`TRINIDAD, CO`	`TUCSON, AZ`
`TUCUMCARI, NM`	`TULSA, OK`	`UNALAKLEET`
`UNALGA`	`VANCOUVER BC`	`WACO, TX`
`WASHINGTON, DC`	`WATERTOWN, SD`	`WATSON LAKE YT`
`WEEKSVILLE, NC`	`WHITEHORSE YT`	`WHITMORE, CA`
`WICHITA FALLS, TX`	`WICHITA, KS`	`WILKES BARRE, PA`
`WILLIAMS LAKE BC`	`WILLIAMS, CA`	`WINK, TX`
`WINNIPEG MB`	`WINSLOW, AZ`	`YAKATAGA`
`YAKUTAT`	`YARMOUTH NS`

-----------------------------------------------

ADAK Radio Range E. MagVar 8.1
"NCI" 347 Kc 51* 54.83'N 176* 33.49'W
To From Range 100nm
Leg1 211M 31M
Leg2 300M 120M
Leg3 45M 225M
Leg4 120M 300M
Return to Index

Airport: PADK R23 232M/3.0nm

-----------------------------------------------

ALEXAI POINT Radio Range E. MagVar 2.1
"AOG" 323 Kc 52* 48.45'N -173* -18.33'W
To From Range 100nm
Leg1 189M 9M
Leg2 272M 92M
Leg3 9M 189M
Leg4 100M 280M
Return to Index

Airport: ATU 284M/4.8nm

-----------------------------------------------

AMCHITKA Radio Range E. MagVar 5.4
"CH" 359 Kc 51* 23.17'N -179* -21.48'W
To From Range 100nm
Leg1 261M 81M
Leg2 346M 166M
Leg3 76M 256M
Leg4 166M 346M
Return to Index

Airport:

-----------------------------------------------

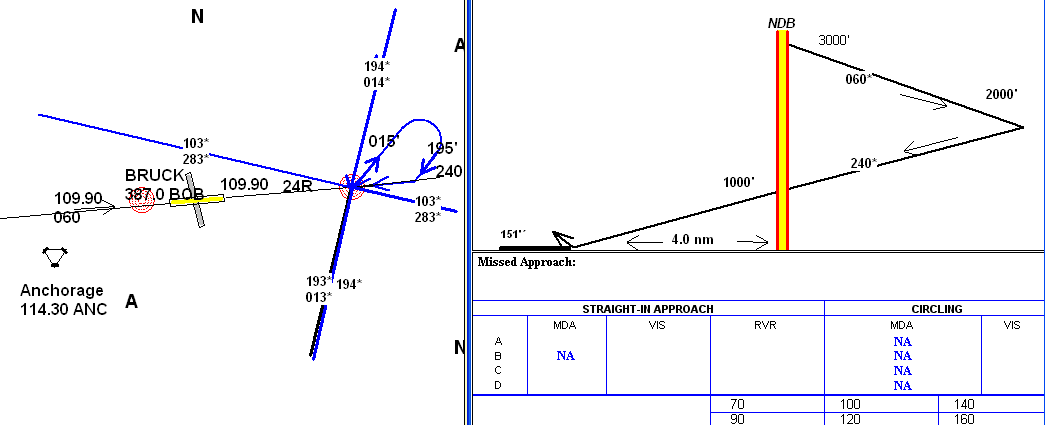

ANCHORAGE Radio Range E. MagVar 24.5
"HQ" 338 Kc 61* 10.24'N 149* 49.63'W
To From Range 100nm
Leg1 194M 14M
Leg2 283M 103M
Leg3 13M 193M
Leg4 103M 283M
Return to Index

Airport: PANC 24R 245M/3.5nm

-----------------------------------------------

ANIAK Radio Range E. MagVar 19.6
"NZ" 326 Kc 61* 34.62'N 159* 36.29'W
To From Range 100nm
Leg1 211M 31M
Leg2 301M 121M
Leg3 31M 211M
Leg4 121M 301M
Return to Index

Airport: PANI 061M/1.8nm

-----------------------------------------------

ANNETTE ISLAND Radio Range E. MagVar 25.5
"TN" 267 Kc 54* 59.53'N 131* 31.28'W
To From Range 100nm
Leg1 291M 111M
Leg2 341M 161M
Leg3 111M 291M
Leg4 138M 318M
Return to Index

Airport: PANT R30 301M/2.6nm

-----------------------------------------------

ATKA Radio Range E. MagVar 9.8
"NCY" 251 Kc 52* 14.18'N 174* 3.41'W
To From Range 100nm
Leg1 172M 352M
Leg2 235M 55M
Leg3 352M 172M
Leg4 82M 262M
Return to Index

Airport: PAAK 250M/5.6nm

-----------------------------------------------

ATTU Radio Range E. MagVar 2.1
"ALM" 358 Kc 52* 51.51'N -173* -12.08'W
To From Range 100nm
Leg1 201M 21M
Leg2 308M 128M
Leg3 21M 201M
Leg4 128M 308M
Return to Index

Airport:

-----------------------------------------------

BETHEL Radio Range E. MagVar 18.1
"UB" 388 Kc 60* 44.64'N 161* 39.67'W
To From Range 100nm
Leg1 209M 29M
Leg2 299M 119M
Leg3 29M 209M
Leg4 119M 299M
Return to Index

Airport:

-----------------------------------------------

BETTLES Radio Range E. MagVar 26.5
"BTT" 392 Kc 66* 51.67'N 151* 37.01'W
To From Range 100nm
Leg1 246M 66M
Leg2 281M 101M
Leg3 66M 246M
Leg4 151M 331M
Return to Index

Airport: PABT 313M/288nm

-----------------------------------------------

BIG DELTA Radio Range E. MagVar 28
"JQ" 379 Kc 64* 1.45'N 145* 41.32'W
To From Range 100nm
Leg1 161M 341M
Leg2 267M 87M
Leg3 341M 161M
Leg4 95M 275M
Return to Index

Airport: PABI R18 182M/2.0nm

-----------------------------------------------

BIRCHWOOD Radio Range E. MagVar 25
"UBW" 239 Kc 61* 23.94'N 149* 31.99'W
To From Range 100nm
Leg1 194M 14M
Leg2 284M 104M
Leg3 342M 162M
Leg4 62M 242M
Return to Index

Airport:

-----------------------------------------------

CAPE KHLEBNIKOF Radio Range E. MagVar 2
"AUN" 266 Kc 52* 54.33'N -172* -28.44'W
To From Range 100nm
Leg1 188M 8M
Leg2 277M 97M
Leg3 8M 188M
Leg4 122M 302M
Return to Index

Airport:

-----------------------------------------------

CHIRIKOF ISLAND Radio Range E. MagVar 21
"CK" 243 Kc 55* 46.94'N 155* 41.41'W
To From Range 100nm
Leg1 165M 345M
Leg2 201M 21M
Leg3 345M 165M
Leg4 61M 241M
Return to Index

Airport:

-----------------------------------------------

CORDOVA RADIO Radio Range E. MagVar 25.7
"KA" 363 Kc 60* 23.65'N 146* 5.41'W
To From Range 100nm
Leg1 180M 0M
Leg2 260M 80M
Leg3 0M 180M
Leg4 80M 260M
Return to Index

Airport:

-----------------------------------------------

CORDOVA RANGE Radio Range E. MagVar 26.1
"FU" 408 Kc 60* 28.28'N 145* 22.87'W
To From Range 100nm
Leg1 177M 357M
Leg2 267M 87M
Leg3 357M 177M
Leg4 87M 267M
Return to Index

Airport: PACV R27 268M/3.5nm

-----------------------------------------------

DUTCH Radio Range E. MagVar 13.8
"SY" 209 Kc 53* 54.26'N 166* 34'W
To From Range 100nm
Leg1 181M 1M
Leg2 271M 91M
Leg3 1M 181M
Leg4 91M 271M
Return to Index

Airport:

-----------------------------------------------

FAIRBANKS Radio Range E. MagVar 27.6
"FAI" 357 Kc 64* 48.54'N 147* 39'W
To From Range 100nm
Leg1 125M 305M
Leg2 271M 91M
Leg3 353M 173M
Leg4 66M 246M
Return to Index

Airport: MTF R24 240M/2.5nm

-----------------------------------------------

FAREWELL Radio Range E. MagVar 23.4
"LU" 206 Kc 62* 29.98'N 153* 58.11'W
To From Range 100nm
Leg1 172M 352M
Leg2 262M 82M
Leg3 352M 172M
Leg4 82M 262M
Return to Index

Airport: PAFW 056M/2.1nm

-----------------------------------------------

GALENA Radio Range E. MagVar 22.5
"GQ" 332 Kc 64* 44.22'N 156* 47.64'W
To From Range 100nm
Leg1 235M 55M
Leg2 337M 157M
Leg3 67M 247M
Leg4 150M 330M
Return to Index

Airport: PAGA R25 247M/3.1nm

-----------------------------------------------

GLENN Radio Range E. MagVar 13
"RS" 284 Kc 53* 20.94'N 167* 56.81'W
To From Range 100nm
Leg1 206M 26M
Leg2 296M 116M
Leg3 26M 206M
Leg4 116M 296M
Return to Index

Airport:

-----------------------------------------------

GULKANA Radio Range E. MagVar 27.2
"XV" 249 Kc 62* 11.72'N 145* 28.08'W
To From Range 100nm
Leg1 210M 30M
Leg2 323M 143M
Leg3 53M 233M
Leg4 143M 323M
Return to Index

Airport: PAGK R14 145M/2.1nm

-----------------------------------------------

GUSTAVUS Radio Range E. MagVar 27.2
"GS" 220 Kc 58* 23.08'N 135* 30.38'W
To From Range 100nm
Leg1 155M 335M
Leg2 246M 66M
Leg3 333M 153M
Leg4 66M 246M
Return to Index

Airport: PAGS 264M/6.8nm

-----------------------------------------------

ILIAMNA Radio Range E. MagVar 21.6
"JP" 412 Kc 59* 45.02'N 154* 48.75'W
To From Range 100nm
Leg1 161M 341M
Leg2 219M 39M
Leg3 305M 125M
Leg4 89M 269M
Return to Index

Airport:

-----------------------------------------------

KENAI Radio Range E. MagVar 24
"JS" 347 Kc 60* 35.4'N 151* 15.96'W
To From Range 100nm
Leg1 185M 5M
Leg2 275M 95M
Leg3 5M 185M
Leg4 95M 275M
Return to Index

Airport: PAEN 136M/1.6nm

-----------------------------------------------

KISKA Radio Range E. MagVar 4.1
"GKI" 379 Kc 51* 59.08'N -177* -32.33'W
To From Range 100nm
Leg1 247M 67M
Leg2 337M 157M
Leg3 67M 247M
Leg4 157M 337M
Return to Index

Airport:

-----------------------------------------------

KODIAK Radio Range E. MagVar 22.3
"NHB" 242 Kc 57* 46.05'N 152* 20.47'W
To From Range 100nm
Leg1 233M 53M
Leg2 336M 156M
Leg3 55M 235M
Leg4 156M 336M
Return to Index

Airport: PADQ 236M/4.6nm

-----------------------------------------------

MCGRATH Radio Range E. MagVar 22.3
"WH" 351 Kc 62* 56.01'N 155* 34.2'W
To From Range 100nm
Leg1 216M 36M
Leg2 277M 97M
Leg3 36M 216M
Leg4 97M 277M
Return to Index

Airport: PAMC 298M/1.5nm

-----------------------------------------------

MINCHUMINA Radio Range E. MagVar 25
"IQ" 228 Kc 63* 53.42'N 152* 21.67'W
To From Range 100nm
Leg1 215M 35M
Leg2 305M 125M
Leg3 35M 215M
Leg4 125M 305M
Return to Index

Airport: PAMH 025M/1.7nm

-----------------------------------------------

MOSES POINT Radio Range E. MagVar 19.2
"HG" 264 Kc 64* 42.4'N 162* 5.87'W
To From Range 100nm
Leg1 246M 66M
Leg2 331M 151M
Leg3 62M 242M
Leg4 151M 331M
Return to Index

Airport: MOS 197M/1.2nm

-----------------------------------------------

NENANA Radio Range E. MagVar 27.1
"NG" 236 Kc 64* 33.95'N 149* 0.7'W
To From Range 100nm
Leg1 216M 36M
Leg2 304M 124M
Leg3 37M 217M
Leg4 130M 310M
Return to Index

Airport: PANN R21R 212M/1.7nm

-----------------------------------------------

NOME Radio Range E. MagVar 17
"YO" 209 Kc 64* 29.67'N 165* 20.51'W
To From Range 100nm
Leg1 179M 359M
Leg2 317M 137M
Leg3 11M 191M
Leg4 119M 299M
Return to Index

Airport: PAOM R27 273M/2.5nm

-----------------------------------------------

NORTH SHORE Radio Range E. MagVar 13
"NKU" 341 Kc 53* 33.18'N 168* 5.11'W
To From Range 100nm
Leg1 217M 37M
Leg2 307M 127M
Leg3 61M 241M
Leg4 127M 307M
Return to Index

Airport:

-----------------------------------------------

NORTHWAY Radio Range E. MagVar 29.1
"PM" 400 Kc 62* 57.82'N 141* 57.11'W
To From Range 100nm
Leg1 223M 43M
Leg2 278M 98M
Leg3 43M 223M
Leg4 98M 278M
Return to Index

Airport: PAOR 073M/0.6m

-----------------------------------------------

PT BARROW Radio Range E. MagVar 25.2
"PTB" 249 Kc 71* 17.13'N 156* 48.41'W
To From Range 100nm
Leg1 225M 45M
Leg2 292M 112M
Leg3 45M 225M
Leg4 135M 315M
Return to Index

Airport:

-----------------------------------------------

RANDALL Radio Range E. MagVar 16.1
"DI" 342 Kc 55* 15.79'N 162* 42.7'W
To From Range 100nm
Leg1 215M 35M
Leg2 322M 142M
Leg3 66M 246M
Leg4 142M 322M
Return to Index

Airport: PACD 171M/3.5nm

-----------------------------------------------

SANAK Radio Range E. MagVar 15.9
"NAK" 230 Kc 54* 24.93'N 162* 28.58'W
To From Range 100nm
Leg1 248M 68M
Leg2 339M 159M
Leg3 50M 230M
Leg4 159M 339M
Return to Index

Airport: PACD 333M/48.2nm

-----------------------------------------------

SAND POINT Radio Range E. MagVar 17.1
"CE" 391 Kc 55* 21.22'N 160* 29.36'W
To From Range 100nm
Leg1 249M 69M
Leg2 340M 160M
Leg3 51M 231M
Leg4 160M 340M
Return to Index

Airport: PASD 187M/2.4nm

-----------------------------------------------

SHEMYA Radio Range E. MagVar 2.7
"PF" 221 Kc 52* 43.18'N -174* -3.88'W
To From Range 100nm
Leg1 190M 10M
Leg2 280M 100M
Leg3 10M 190M
Leg4 100M 280M
Return to Index

Airport: PASY R10 104M/1.0nm

-----------------------------------------------

SITKA Radio Range E. MagVar 26.5
"SI" 359 Kc 56* 50.9'N 135* 32.17'W
To From Range 100nm
Leg1 156M 336M
Leg2 247M 67M
Leg3 300M 120M
Leg4 118M 298M
Return to Index

Airport: PASI 359M/13.2nm

-----------------------------------------------

SKWENTNA Radio Range E. MagVar 24.5
"RJ" 269 Kc 61* 57.76'N 151* 12.59'W
To From Range 100nm
Leg1 188M 8M
Leg2 272M 92M
Leg3 8M 188M
Leg4 92M 272M
Return to Index

Airport: PASW 048M/0.5nm

-----------------------------------------------

SUMMIT Radio Range E. MagVar 26
"JD" 221 Kc 63* 17.82'N 149* 14.73'W
To From Range 100nm
Leg1 193M 13M
Leg2 283M 103M
Leg3 13M 193M
Leg4 103M 283M
Return to Index

Airport: UMM R03 031M/3.5nm

-----------------------------------------------

TANACROSS Radio Range E. MagVar 28.7
"TW" 317 Kc 63* 20.59'N 143* 17.69'W
To From Range 100nm
Leg1 164M 344M
Leg2 254M 74M
Leg3 344M 164M
Leg4 74M 254M
Return to Index

Airport: TSG R30 301M/1.8nm

-----------------------------------------------

TANAGA Radio Range E. MagVar 8.1
"ASI" 260 Kc 51* 42.03'N 178* 2.44'W
To From Range 100nm
Leg1 198M 18M
Leg2 288M 108M
Leg3 18M 198M
Leg4 108M 288M
Return to Index

Airport:

-----------------------------------------------

UNALAKLEET Radio Range E. MagVar 19.6
"UW" 383 Kc 63* 51.4'N 160* 44.96'W
To From Range 100nm
Leg1 269M 89M
Leg2 339M 159M
Leg3 89M 269M
Leg4 159M 339M
Return to Index

Airport:

-----------------------------------------------

UNALGA Radio Range E. MagVar 13.8
"NCV" 269 Kc 53* 57.35'N 166* 8.14'W
To From Range 100nm
Leg1 190M 10M
Leg2 280M 100M
Leg3 10M 190M
Leg4 100M 280M
Return to Index

Airport:

-----------------------------------------------

YAKATAGA Radio Range E. MagVar 27.1
"ZZ" 210 Kc 60* 5.15'N 142* 29.7'W
To From Range 100nm
Leg1 237M 57M
Leg2 327M 147M
Leg3 57M 237M
Leg4 147M 327M
Return to Index

Airport: PACY On Field

-----------------------------------------------

YAKUTAT Radio Range E. MagVar 27.7
"VY" 386 Kc 59* 32.6'N 139* 43.67'W
To From Range 100nm
Leg1 202M 22M
Leg2 264M 84M
Leg3 22M 202M
Leg4 81M 261M
Return to Index

Airport: PAYA R11 107M/3.2nm

-----------------------------------------------

ABBOTSFORD BC Radio Range E. MagVar 20.8
"XA" 345 Kc 49* 0.86'N 122* 29.27'W
To From Range 100nm
Leg1 151M 331M
Leg2 249M 69M
Leg3 330M 150M
Leg4 69M 249M
Return to Index

Airport: CYXX R07 065M/4.3nm

-----------------------------------------------

AISHIHIK YT Radio Range E. MagVar 31
"ZK" 342 Kc 61* 43'N 137* 26'W
To From Range 100nm
Leg1 167M 347M
Leg2 276M 96M
Leg3 347M 167M
Leg4 88M 268M
Return to Index

Airport:

-----------------------------------------------

ARMSTRONG ON Radio Range E. MagVar -2.5
"YW" 347 Kc 50* 18.41'N 88* 57.39'W
To From Range 100nm
Leg1 205M 25M
Leg2 279M 99M
Leg3 10M 190M
Leg4 92M 272M
Return to Index

Airport: CYYW R12 121M/1.7nm

-----------------------------------------------

BROADVIEW SK Radio Range E. MagVar 12
"DR" 242 Kc 50* 17.99'N 102* 32.16'W
To From Range 100nm
Leg1 174M 354M
Leg2 271M 91M
Leg3 354M 174M
Leg4 80M 260M
Return to Index

Airport:

-----------------------------------------------

CALGARY AB Radio Range E. MagVar 19.3
"YX" 345 Kc 51* 7.44'N 113* 55.92'W
To From Range 100nm
Leg1 168M 348M
Leg2 252M 72M
Leg3 317M 137M
Leg4 59M 239M
Return to Index

Airport: CYAB 235M/3.0nm

-----------------------------------------------

CAPE HARRISON LB Radio Range E. MagVar -29.5
"JH" 344 Kc 54* 46.44'N 58* 26.4'W
To From Range 100nm
Leg1 252M 72M
Leg2 342M 162M
Leg3 62M 242M
Leg4 162M 342M
Return to Index

Airport:

-----------------------------------------------

CARMI BC Radio Range E. MagVar 20
"XO" 335 Kc 49* 29.43'N 119* 5.88'W
To From Range 100nm
Leg1 167M 347M
Leg2 250M 70M
Leg3 339M 159M
Leg4 74M 254M
Return to Index

Airport:

-----------------------------------------------

CASTLEGAR BC Radio Range E. MagVar 19.7
"QS" 228 Kc 49* 26.83'N 117* 34.5'W
To From Range 100nm
Leg1 173M 353M
Leg2 243M 63M
Leg3 356M 176M
Leg4 72M 252M
Return to Index

Airport: CYCG 9.3nm 174M

-----------------------------------------------

CHARLOTTETOWN PEI Radio Range E. MagVar -21.8
"YY" 348 Kc 46* 19.99'N 63* 11.53'W
To From Range 100nm
Leg1 178M 358M
Leg2 290M 110M
Leg3 358M 178M
Leg4 100M 280M
Return to Index

Airport: CYYG 153m/3.9nm

-----------------------------------------------

CLEAR CREEK ON Radio Range E. MagVar -7.9
"QO" 249 Kc 42* 35'N 80* 33.8'W
To From Range 100nm
Leg1 220M 40M
Leg2 283M 103M
Leg3 34M 214M
Leg4 88M 268M
Return to Index

Airport:

-----------------------------------------------

COMOX BC Radio Range E. MagVar 21.9
"QX" 401 Kc 49* 45.37'N 124* 57.01'W
To From Range 100nm
Leg1 176M 356M
Leg2 289M 109M
Leg3 13M 193M
Leg4 101M 281M
Return to Index

Airport: CYQQ R11 115M/3.0nm

-----------------------------------------------

COPPER LAKE NS Radio Range E. MagVar -22
"VW" 233 Kc 45* 24.03'N 61* 59.44'W
To From Range 100nm
Leg1 261M 81M
Leg2 325M 145M
Leg3 78M 258M
Leg4 145M 325M
Return to Index

Airport:

-----------------------------------------------

COWLEY AB Radio Range E. MagVar 18.8
"YM" 212 Kc 49* 35.5'N 114* 5'W
To From Range 100nm
Leg1 173M 353M
Leg2 248M 68M
Leg3 325M 145M
Leg4 68M 248M
Return to Index

Airport: CYYM 332M/2.7nm

-----------------------------------------------

CRANBROOK BC Radio Range E. MagVar 19.6
"QE" 281 Kc 49* 32.8'N 115* 46.83'W
To From Range 100nm
Leg1 162M 342M
Leg2 254M 74M
Leg3 345M 165M
Leg4 67M 247M
Return to Index

Airport: CYXC R16 158M/3.8nm

-----------------------------------------------

DARTMOUTH NS Radio Range E. MagVar -21.2
"XF" 254 Kc 44* 41.25'N 63* 32.75'W
To From Range 100nm
Leg1 175M 355M
Leg2 259M 79M
Leg3 358M 178M
Leg4 89M 269M
Return to Index

Airport: CYAW R16 164M/2.9nm

-----------------------------------------------

EARLTON JUNCTION ON Radio Range E. MagVar -11.5
"XR" 258 Kc 47* 42.93'N 79* 47.62'W
To From Range 100nm
Leg1 160M 340M
Leg2 257M 77M
Leg3 3M 183M
Leg4 80M 260M
Return to Index

Airport: CYXR R26 255M/1.9nm

-----------------------------------------------

EDMONTON AB Radio Range E. MagVar 21
"XW" 267 Kc 53* 36.55'N 113* 30.78'W
To From Range 100nm
Leg1 256M 76M
Leg2 345M 165M
Leg3 28M 208M
Leg4 98M 278M
Return to Index

Airport: CYXD R16 159M/1.7nm

-----------------------------------------------

FORT CHIMO PQ Crystal One Radio Range E. MagVar -30.5
"VQ" 391 Kc 58* 2.6'N 68* 30.63'W
To From Range 100nm
Leg1 254M 74M
Leg2 344M 164M
Leg3 79M 259M
Leg4 164M 344M
Return to Index

Airport: CYVP R07 073M/3.4nm

-----------------------------------------------

FORT NELSON BC Radio Range E. MagVar 28.1
"YD" 383 Kc 58* 49.01'N 122* 39.75'W
To From Range 100nm
Leg1 165M 345M
Leg2 309M 129M
Leg3 6M 186M
Leg4 87M 267M
Return to Index

Airport: CYYE R03 029M/1.7nm

-----------------------------------------------

FORT ST JOHN BC Radio Range E. MagVar 25.1
"LX" 327 Kc 56* 15.9'N 120* 47.4'W
To From Range 100nm
Leg1 133M 313M
Leg2 193M 13M
Leg3 289M 109M
Leg4 46M 226M
Return to Index

Airport: CYXJ R11 110M/1.7nm

-----------------------------------------------

FORT WILLIAM ON Radio Range E. MagVar -1.7
"QW" 333 Kc 48* 23.13'N 89* 16.21'W
To From Range 100nm
Leg1 154M 334M
Leg2 235M 55M
Leg3 334M 154M
Leg4 55M 235M
Return to Index

Airport: CYQT R25 252M/1.7nm

-----------------------------------------------

FREDERICTON NB Radio Range E. MagVar -20.1
"FD" 327 Kc 45* 54.9'N 66* 26.1'W
To From Range 100nm
Leg1 156M 336M
Leg2 284M 104M
Leg3 336M 156M
Leg4 101M 281M
Return to Index

Airport: CYFC R15 154M/3.5nm

-----------------------------------------------

GANDER NF Radio Range E. MagVar -24.8
"QG" 281 Kc 48* 58.2'N 54* 39.99'W
To From Range 100nm
Leg1 165M 345M
Leg2 283M 103M
Leg3 343M 163M
Leg4 106M 286M
Return to Index

Airport: CYQX R13 133M/3.3nm

-----------------------------------------------

GOOSE BAY NF Radio Range E. MagVar -27.5
"YG" 258 Kc 53* 17.06'N 60* 20.84'W
To From Range 100nm
Leg1 163M 343M
Leg2 250M 70M
Leg3 347M 167M
Leg4 81M 261M
Return to Index

Airport: CYYR R34 341M/2.8nm

-----------------------------------------------

GRAND PRAIRIE AB Radio Range E. MagVar 23.7
"QV" 222 Kc 55* 9.27'N 118* 50.49'W
To From Range 100nm
Leg1 112M 292M
Leg2 170M 350M
Leg3 270M 90M
Leg4 38M 218M
Return to Index

Airport: CYQU R29 291M/1.7nm

-----------------------------------------------

GREENWOOD NS Radio Range E. MagVar -20.4
"ZV" 267 Kc 44* 59.6'N 65* 0.67'W
To From Range 100nm
Leg1 234M 54M
Leg2 300M 120M
Leg3 51M 231M
Leg4 146M 326M
Return to Index

Airport: CYZX 118M/4.0nm

-----------------------------------------------

KAPUSKASING ON Radio Range E. MagVar -10
"YU" 266 Kc 49* 26.67'N 82* 29.5'W
To From Range 100nm
Leg1 223M 43M
Leg2 311M 131M
Leg3 44M 224M
Leg4 121M 301M
Return to Index

Airport: CYYU R17 166M/1.7nm

-----------------------------------------------

KENORA ON Radio Range E. MagVar 3.3
"QK" 327 Kc 49* 46.8'N 94* 25.25'W
To From Range 100nm
Leg1 195M 15M
Leg2 254M 74M
Leg3 9M 189M
Leg4 96M 276M
Return to Index

Airport: CYQK R07 074M/1.8nm

-----------------------------------------------

KILLALOE ON Radio Range E. MagVar -13.1
"XI" 227 Kc 45* 36'N 77* 23.93'W
To From Range 100nm
Leg1 213M 33M
Leg2 294M 114M
Leg3 33M 213M
Leg4 131M 311M
Return to Index

Airport:

-----------------------------------------------

LETHBRIDGE AB Radio Range E. MagVar 18.3
"QT" 249 Kc 49* 37.5'N 112* 42.32'W
To From Range 100nm
Leg1 136M 316M
Leg2 237M 57M
Leg3 333M 153M
Leg4 74M 254M
Return to Index

Airport: CYQL R23 232M/3.4nm

-----------------------------------------------

LONDON ON Radio Range E. MagVar -7.9
"XZ" 383 Kc 43* 4.45'N 81* 11.84'W
To From Range 100nm
Leg1 142M 322M
Leg2 259M 79M
Leg3 327M 147M
Leg4 66M 246M
Return to Index

Airport: CYXU R15 147M/2.5nm

-----------------------------------------------

MECATINA PQ Radio Range E. MagVar -26.1
"JU" 227 Kc 51* 49.57'N 62* 52.86'W
To From Range 100nm
Leg1 230M 50M
Leg2 320M 140M
Leg3 50M 230M
Leg4 137M 317M
Return to Index

Airport:

-----------------------------------------------

MEDICINE HAT AB Radio Range E. MagVar 17.3
"XM" 333 Kc 50* 0.48'N 110* 48.51'W
To From Range 100nm
Leg1 244M 64M
Leg2 292M 112M
Leg3 55M 235M
Leg4 112M 292M
Return to Index

Airport: CYXH R03 027M/1.8nm

-----------------------------------------------

MEGANTIC PQ Radio Range E. MagVar -17.8
"XG" 363 Kc 45* 35.16'N 70* 47.44'W
To From Range 100nm
Leg1 175M 355M
Leg2 284M 104M
Leg3 358M 178M
Leg4 104M 284M
Return to Index

Airport: CSL4 R29 290M/3.2nm

-----------------------------------------------

MINGAN PQ Radio Range E. MagVar -24.2
"UU" 212 Kc 50* 15.76'N 64* 9.57'W
To From Range 100nm
Leg1 242M 62M
Leg2 320M 140M
Leg3 62M 242M
Leg4 151M 331M
Return to Index

Airport: CYLP 043M/1.7nm

-----------------------------------------------

MONCTON NB Radio Range E. MagVar -21
"QP" 225 Kc 46* 8.25'N 64* 35.25'W
To From Range 100nm
Leg1 168M 348M
Leg2 279M 99M
Leg3 353M 173M
Leg4 93M 273M
Return to Index

Airport: CYQM R29 289M/2.9nm

-----------------------------------------------

MONT JOLI PQ Radio Range E. MagVar -21.7
"YQ" 341 Kc 48* 33.71'N 68* 15.98'W
To From Range 100nm
Leg1 238M 58M
Leg2 331M 151M
Leg3 73M 253M
Leg4 130M 310M
Return to Index

Airport: CYYY R06 060M/3.2nm

-----------------------------------------------

MONTREAL PQ Radio Range E. MagVar -15
"UM" 249 Kc 45* 27.66'N 73* 51.72'W
To From Range 100nm
Leg1 169M 349M
Leg2 283M 103M
Leg3 349M 169M
Leg4 100M 280M
Return to Index

Airport: CYUL R10 103M/4.1nm

-----------------------------------------------

MUSKOKA ON Radio Range E. MagVar -10.7
"QA" 273 Kc 45* 2.35'N 79* 16.97'W
To From Range 100nm
Leg1 185M 5M
Leg2 258M 78M
Leg3 20M 200M
Leg4 88M 268M
Return to Index

Airport: CYQA 203M/4.0nm

-----------------------------------------------

NAKINA ON Radio Range E. MagVar -4.9
"QD" 234 Kc 50* 10.81'N 86* 44.93'W
To From Range 100nm
Leg1 194M 14M
Leg2 285M 105M
Leg3 13M 193M
Leg4 100M 280M
Return to Index

Airport: CYQN R09 121M/1.7nm

-----------------------------------------------

NANAIMO CASSIDY BC Radio Range E. MagVar 21.2
"CD" 252 Kc 49* 7.75'N 123* 52.16'W
To From Range 100nm
Leg1 159M 339M
Leg2 253M 73M
Leg3 340M 160M
Leg4 67M 247M
Return to Index

Airport: CYCD R16 159M/4.1nm

-----------------------------------------------

NORTH BAY ON Radio Range E. MagVar -11.2
"YC" 347 Kc 46* 23.01'N 79* 28.53'W
To From Range 100nm
Leg1 182M 2M
Leg2 309M 129M
Leg3 5M 185M
Leg4 120M 300M
Return to Index

Airport: CYYB 130M/2.5nm

-----------------------------------------------

OTTAWA ON Radio Range E. MagVar -13.4
"OY" 237 Kc 45* 18.9'N 75* 35.95'W
To From Range 100nm
Leg1 219M 39M
Leg2 274M 94M
Leg3 50M 230M
Leg4 118M 298M
Return to Index

Airport: CYOW 292M/3.0nm

-----------------------------------------------

PAGWA ON Radio Range E. MagVar -8.4
"XK" 248 Kc 50* 1.5'N 85* 13.5'W
To From Range 100nm
Leg1 206M 26M
Leg2 296M 116M
Leg3 25M 205M
Leg4 109M 289M
Return to Index

Airport: CNX3 R10 098M/1.5nm

-----------------------------------------------

PATRICIA BAY BC Radio Range E. MagVar 21
"YK" 201 Kc 48* 37.77'N 123* 19.24'W
To From Range 100nm
Leg1 163M 343M
Leg2 258M 78M
Leg3 323M 143M
Leg4 85M 265M
Return to Index

Airport: CYYJ R27 265M/3.8nm

-----------------------------------------------

PENNFIELD RIDGE NB Radio Range E. MagVar -20.1
"YP" 379 Kc 45* 7.03'N 66* 45.78'W
To From Range 100nm
Leg1 155M 335M
Leg2 267M 87M
Leg3 357M 177M
Leg4 100M 280M
Return to Index

Airport:

-----------------------------------------------

PENTICTON BC Radio Range E. MagVar 20.3
"YF" 291 Kc 49* 29.68'N 119* 36.3'W
To From Range 100nm
Leg1 159M 339M
Leg2 242M 62M
Leg3 333M 153M
Leg4 67M 247M
Return to Index

Airport: CYYF R16 155M/1.4nm

-----------------------------------------------

PORQUIS JUNCTION ON Radio Range E. MagVar -11.1
"QJ" 326 Kc 48* 43.19'N 80* 44.77'W
To From Range 100nm
Leg1 260M 80M
Leg2 338M 158M
Leg3 68M 248M
Leg4 134M 314M
Return to Index

Airport: CNE4 R32 315M/1.9nm

-----------------------------------------------

PORT HARDY BC Radio Range E. MagVar 22.7
"ZX" 243 Kc 50* 42.89'N 127* 25.76'W
To From Range 100nm
Leg1 112M 292M
Leg2 199M 19M
Leg3 277M 97M
Leg4 21M 201M
Return to Index

Airport: CYZT R11 109M/2.8nm

-----------------------------------------------

PRINCE GEORGE BC Radio Range E. MagVar 24.1
"XE" 273 Kc 53* 51.17'N 122* 39.49'W
To From Range 100nm
Leg1 147M 327M
Leg2 330M 150M
Leg3 19M 199M
Leg4 88M 268M
Return to Index

Airport: CYXS R33 327M/1.7nm

-----------------------------------------------

PRINCETON BC Radio Range E. MagVar 20.3
"OP" 327 Kc 49* 28.58'N 120* 29.72'W
To From Range 100nm
Leg1 140M 320M
Leg2 248M 68M
Leg3 340M 160M
Leg4 61M 241M
Return to Index

Airport: CYDC R21 212M/0.5nm

-----------------------------------------------

QUEBEC PQ Radio Range E. MagVar -18.4
"QC" 231 Kc 46* 44.22'N 71* 28.34'W
To From Range 100nm
Leg1 247M 67M
Leg2 325M 145M
Leg3 60M 240M
Leg4 145M 325M
Return to Index

Airport: CYQB R)6 063M/3.9nm

-----------------------------------------------

QUESNEL BC Radio Range E. MagVar 23.3
"QZ" 360 Kc 52* 59.55'N 122* 28.6'W
To From Range 100nm
Leg1 150M 330M
Leg2 182M 2M
Leg3 319M 139M
Leg4 31M 211M
Return to Index

Airport: CYQZ R31 306M/1.9nm

-----------------------------------------------

REGINA SK Radio Range E. MagVar 13.5
"QN" 291 Kc 50* 23.98'N 104* 36.89'W
To From Range 100nm
Leg1 124M 304M
Leg2 262M 82M
Leg3 301M 121M
Leg4 75M 255M
Return to Index

Airport: CYQR R31 304M/2.0nm

-----------------------------------------------

RIVERS MB Radio Range E. MagVar 9.5
"YI" 296 Kc 49* 58.52'N 100* 19.41'W
To From Range 100nm
Leg1 178M 358M
Leg2 264M 84M
Leg3 358M 178M
Leg4 93M 273M
Return to Index

Airport: CYDN 041M/12.8nm

-----------------------------------------------

SAINT JOHN NB Radio Range E. MagVar -20
"SJ" 213 Kc 45* 23.38'N 65* 49.32'W
To From Range 100nm
Leg1 175M 355M
Leg2 237M 57M
Leg3 325M 145M
Leg4 51M 231M
Return to Index

Airport: CYSJ R23 231M/5.0nm

-----------------------------------------------

SAULT STE MARIE ON Radio Range E. MagVar -6.3
"SM" 401 Kc 46* 26.73'N 84* 19.22'W
To From Range 100nm
Leg1 206M 26M
Leg2 319M 139M
Leg3 26M 206M
Leg4 139M 319M
Return to Index

Airport: CYAM 293M/7.6nm3112M2nm

-----------------------------------------------

SEVEN ISLANDS PQ Radio Range E. MagVar -23.4
"XV" 274 Kc 50* 12.17'N 66* 9.17'W
To From Range 100nm
Leg1 251M 71M
Leg2 315M 135M
Leg3 65M 245M
Leg4 131M 311M
Return to Index

Airport: CYZV R31 312M/4.1nm

-----------------------------------------------

SIOUX LOOKOUT ON Radio Range E. MagVar 1
"XL" 242 Kc 50* 6'N 91* 59.5'W
To From Range 100nm
Leg1 160M 340M
Leg2 256M 76M
Leg3 340M 160M
Leg4 76M 256M
Return to Index

Airport: CYXL 075M/3.5nm

-----------------------------------------------

SNAG YT Radio Range E. MagVar 28.7
"XQ" 240 Kc 62* 26.31'N 140* 20.23'W
To From Range 100nm
Leg1 169M 349M
Leg2 269M 89M
Leg3 349M 169M
Leg4 99M 279M
Return to Index

Airport:

-----------------------------------------------

STEPHENVILLE NF Radio Range E. MagVar -24.6
"JT" 390 Kc 48* 32.63'N 58* 45.28'W
To From Range 100nm
Leg1 193M 13M
Leg2 285M 105M
Leg3 85M 265M
Leg4 143M 323M
Return to Index

Airport: CYJT 114M/8.0nm

-----------------------------------------------

STIRLING ON Radio Range E. MagVar -11.1
"XU" 382 Kc 44* 18.3'N 77* 38.48'W
To From Range 100nm
Leg1 255M 75M
Leg2 352M 172M
Leg3 85M 265M
Leg4 181M 1M
Return to Index

Airport:

-----------------------------------------------

SWIFT CURRENT SK Radio Range E. MagVar 15.6
"YN" 314 Kc 50* 17.3'N 107* 47'W
To From Range 100nm
Leg1 183M 3M
Leg2 250M 70M
Leg3 3M 183M
Leg4 64M 244M
Return to Index

Airport: CYYN R30 299M/1.7nm

-----------------------------------------------

SYDNEY NS Radio Range E. MagVar -22.6
"QY" 269 Kc 46* 12.68'N 59* 58.53'W
To From Range 100nm
Leg1 225M 45M
Leg2 316M 136M
Leg3 83M 263M
Leg4 125M 305M
Return to Index

Airport: CYQY R25 248M/3.8nm

-----------------------------------------------

TESLIN YT Radio Range E. MagVar 29.1
"ZU" 270 Kc 60* 8.12'N 132* 37.16'W
To From Range 100nm
Leg1 167M 347M
Leg2 238M 58M
Leg3 347M 167M
Leg4 90M 270M
Return to Index

Airport: CYZW R26 258M/3.5nm

-----------------------------------------------

TORONTO ON Radio Range E. MagVar -9.2
"YZ" 369 Kc 43* 37.2'N 79* 40.11'W
To From Range 100nm
Leg1 200M 20M
Leg2 324M 144M
Leg3 42M 222M
Leg4 113M 293M
Return to Index

Airport: CYYZ R05 013M/3.3nm

-----------------------------------------------

WATSON LAKE YT Radio Range E. MagVar 29.4
"VF" 333 Kc 60* 10.88'N 128* 51.43'W
To From Range 100nm
Leg1 112M 292M
Leg2 260M 80M
Leg3 312M 132M
Leg4 60M 240M
Return to Index

Airport: CYQH 135M/4.0nm

-----------------------------------------------

WHITEHORSE YT Radio Range E. MagVar 29.6
"XY" 312 Kc 60* 47.11'N 135* 7.52'W
To From Range 100nm
Leg1 141M 321M
Leg2 248M 68M
Leg3 313M 133M
Leg4 106M 286M
Return to Index

Airport: CYXY R13 130M/4.1nm

-----------------------------------------------

WILLIAMS LAKE BC Radio Range E. MagVar 22.5
"WK" 386 Kc 52* 9.42'N 122* 0.56'W
To From Range 100nm
Leg1 139M 319M
Leg2 188M 8M
Leg3 318M 138M
Leg4 17M 197M
Return to Index

Airport: CYWL R29 291/1.7nm

-----------------------------------------------

WINNIPEG MB Radio Range E. MagVar 6.5
"WZ" 249 Kc 49* 55.15'N 97* 18.94'W
To From Range 100nm
Leg1 174M 354M
Leg2 267M 87M
Leg3 352M 172M
Leg4 87M 267M
Return to Index

Airport: CYWG R07 078M/2.7nm

-----------------------------------------------

YARMOUTH NS Radio Range E. MagVar -19.4
"QI" 207 Kc 43* 55.65'N 66* 5.27'W
To From Range 100nm
Leg1 199M 19M
Leg2 264M 84M
Leg3 342M 162M
Leg4 82M 262M
Return to Index

Airport: CYQI 199M/6.0nm

-----------------------------------------------

VANCOUVER BC Radio Range E. MagVar 21.1
"VX" 248 Kc 49* 10.71'N 123* 6.32'W
To From Range 100nm
Leg1 161M 341M
Leg2 240M 60M
Leg3 0M 180M
Leg4 73M 253M
Return to Index

Airport:

-----------------------------------------------

CALCUTTA India Radio Range E. MagVar -0.8
"EA" 391 Kc 22* 47.37'N -88* -27.62'W
To From Range 100nm
Leg1 235M 55M
Leg2 295M 115M
Leg3 55M 235M
Leg4 115M 295M
Return to Index

Airport:

-----------------------------------------------

CHABUA India Radio Range E. MagVar -0.6
"VG" 400 Kc 27* 30.87'N -95* -11.53'W
To From Range 100nm
Leg1 229M 49M
Leg2 314M 134M
Leg3 49M 229M
Leg4 134M 314M
Return to Index

Airport: VG R23 229M/4.69nm

-----------------------------------------------

GAYA India Radio Range E. MagVar -0.5
"AM" 205 Kc 24* 43.67'N -84* -56.43'W
To From Range 100nm
Leg1 254M 74M
Leg2 344M 164M
Leg3 74M 254M
Leg4 164M 344M
Return to Index

Airport: AM R01 014M/0.56nm

-----------------------------------------------

KARACHI India Radio Range E. MagVar 0.2
"RY" 295 Kc 24* 55.02'N -67* -12.63'W
To From Range 100nm
Leg1 256M 76M
Leg2 316M 136M
Leg3 76M 256M
Leg4 136M 316M
Return to Index

Airport: RY R26 255M/1.9nm

-----------------------------------------------

KUNMING China Radio Range E. MagVar -1.1
"RQ" 215 Kc 25* 2.89'N -102* -46.18'W
To From Range 100nm
Leg1 192M 12M
Leg2 282M 102M
Leg3 12M 192M
Leg4 102M 282M
Return to Index

Airport: RQ R22 196M/2.1nm

-----------------------------------------------

LALMANIR HAT India Radio Range E. MagVar -0.5
"XR" 235 Kc 25* 54.75'N -89* -25.37'W
To From Range 100nm
Leg1 257M 77M
Leg2 347M 167M
Leg3 77M 257M
Leg4 167M 347M
Return to Index

Airport: XR R23 105M/1.05nm

-----------------------------------------------

TEZPUR India Radio Range E. MagVar -0.5
"YP" 375 Kc 26* 40.17'N -92* -43.38'W
To From Range 100nm
Leg1 268M 88M
Leg2 331M 151M
Leg3 75M 255M
Leg4 137M 317M
Return to Index

Airport: YP 056M/2.95nm

-----------------------------------------------

ADVANCE, MO Radio Range E. MagVar 1.7
"AF" 548 Kc 37* 4.6'N 89* 54.9'W
To From Range 100nm
Leg1 259M 79M
Leg2 359M 179M
Leg3 79M 259M
Leg4 160M 340M
Return to Index

Airport:

-----------------------------------------------

AKRON, OH Radio Range E. MagVar -7
"AX" 596 Kc 41* 1.9'N 81* 29'W
To From Range 100nm
Leg1 228M 48M
Leg2 328M 148M
Leg3 48M 228M
Leg4 138M 318M
Return to Index

Airport:

-----------------------------------------------

ALBANY, GA Radio Range E. MagVar -2
"GY" 597 Kc 31* 46.1'N 84* 0'W
To From Range 100nm
Leg1 207M 27M
Leg2 303M 123M
Leg3 27M 207M
Leg4 123M 303M
Return to Index

Airport:

-----------------------------------------------

ALBANY, NY Radio Range E. MagVar -13.9
"AZ" 567 Kc 42* 48'N 73* 48'W
To From Range 100nm
Leg1 209M 29M
Leg2 322M 142M
Leg3 27M 207M
Leg4 123M 303M
Return to Index

Airport:

-----------------------------------------------

ALEXANDRIA, LA Radio Range E. MagVar 4.3
"DAI" 598 Kc 31* 15.5'N 92* 28'W
To From Range 100nm
Leg1 225M 45M
Leg2 315M 135M
Leg3 45M 225M
Leg4 135M 315M
Return to Index

Airport:

-----------------------------------------------

ALICE, TX Radio Range E. MagVar 6.9
"EZ" 599 Kc 27* 44'N 98* 6'W
To From Range 100nm
Leg1 224M 44M
Leg2 346M 166M
Leg3 75M 255M
Leg4 157M 337M
Return to Index

Airport:

-----------------------------------------------

ALLENTOWN, PA Radio Range E. MagVar -12.1
"XA" 649 Kc 40* 42.7'N 75* 25.2'W
To From Range 100nm
Leg1 243M 63M
Leg2 293M 113M
Leg3 63M 243M
Leg4 113M 293M
Return to Index

Airport:

-----------------------------------------------

ALMA, GA Radio Range E. MagVar -2.7
"AJ" 537 Kc 31* 34'N 82* 32.2'W
To From Range 100nm
Leg1 231M 51M
Leg2 328M 148M
Leg3 54M 234M
Leg4 148M 328M
Return to Index

Airport:

-----------------------------------------------

ALTOONA, PA Radio Range E. MagVar -9.2
"RF" 338 Kc 40* 19.6'N 78* 19.2'W
To From Range 100nm
Leg1 205M 25M
Leg2 283M 103M
Leg3 25M 205M
Leg4 103M 283M
Return to Index

Airport:

-----------------------------------------------

ATLANTA, GA Radio Range E. MagVar -2.4
"AG" 542 Kc 33* 37.1'N 84* 23.7'W
To From Range 100nm
Leg1 239M 59M
Leg2 319M 139M
Leg3 54M 234M
Leg4 155M 335M
Return to Index

Airport:

-----------------------------------------------

AUGUSTA, GA Radio Range E. MagVar -3.7
"VD" 587 Kc 33* 26.4'N 82* 3.8'W
To From Range 100nm
Leg1 230M 50M
Leg2 291M 111M
Leg3 50M 230M
Leg4 111M 291M
Return to Index

Airport:

-----------------------------------------------

AUGUSTA, ME Radio Range E. MagVar -17.2
"AW" 601 Kc 44* 18'N 69* 50'W
To From Range 100nm
Leg1 223M 43M
Leg2 308M 128M
Leg3 45M 225M
Leg4 128M 308M
Return to Index

Airport:

-----------------------------------------------

AUSTIN, TX Radio Range E. MagVar 7
"XN" 600 Kc 30* 19.2'N 97* 43.6'W
To From Range 100nm
Leg1 192M 12M
Leg2 300M 120M
Leg3 46M 226M
Leg4 120M 300M
Return to Index

Airport:

-----------------------------------------------

BALTIMORE, MD Radio Range E. MagVar -9.7
"BO" 602 Kc 39* 12.6'N 76* 32.2'W
To From Range 100nm
Leg1 194M 14M
Leg2 309M 129M
Leg3 14M 194M
Leg4 113M 293M
Return to Index

Airport:

-----------------------------------------------

BANGOR, ME Radio Range E. MagVar -18.4
"BB" 603 Kc 44* 50.6'N 68* 51.2'W
To From Range 100nm
Leg1 251M 71M
Leg2 351M 171M
Leg3 81M 261M
Leg4 171M 351M
Return to Index

Airport:

-----------------------------------------------

BELLEFONTE, PA Radio Range E. MagVar -9.7
"BF" 566 Kc 40* 54'N 77* 42.3'W
To From Range 100nm
Leg1 201M 21M
Leg2 283M 103M
Leg3 21M 201M
Leg4 113M 293M
Return to Index

Airport:

-----------------------------------------------

BIRMINGHAM, AL Radio Range E. MagVar -0.1
"BH" 550 Kc 33* 37'N 86* 43.9'W
To From Range 100nm
Leg1 181M 1M
Leg2 276M 96M
Leg3 1M 181M
Leg4 53M 233M
Return to Index

Airport:

-----------------------------------------------

BISMARCK, ND Radio Range E. MagVar 9.9
"RK" 604 Kc 46* 46.6'N 100* 32.2'W
To From Range 100nm
Leg1 256M 76M
Leg2 336M 156M
Leg3 83M 263M
Leg4 161M 341M
Return to Index

Airport:

-----------------------------------------------

BLACKSTONE, VA Radio Range E. MagVar -8.1
"KT" 371 Kc 37* 7.9'N 78* 2.23'W
To From Range 100nm
Leg1 253M 73M
Leg2 316M 136M
Leg3 67M 247M
Leg4 136M 316M
Return to Index

Airport:

-----------------------------------------------

BOSTON, MA Radio Range E. MagVar -15.5
"BW" 569 Kc 42* 23.6'N 70* 59'W
To From Range 100nm
Leg1 212M 32M
Leg2 299M 119M
Leg3 59M 239M
Leg4 119M 299M
Return to Index

Airport:

-----------------------------------------------

BROWNSVILLE, TX Radio Range E. MagVar 6.5
"JI" 605 Kc 25* 56.9'N 97* 26.1'W
To From Range 100nm
Leg1 280M 100M
Leg2 3M 183M
Leg3 106M 286M
Leg4 162M 342M
Return to Index

Airport:

-----------------------------------------------

BRYAN, TX Radio Range E. MagVar 6
"DBN" 612 Kc 30* 41.1'N 96* 32.3'W
To From Range 100nm
Leg1 218M 38M
Leg2 308M 128M
Leg3 38M 218M
Leg4 128M 308M
Return to Index

Airport:

-----------------------------------------------

BUCKSTOWN, PA Radio Range E. MagVar -8.4
"BQ" 615 Kc 40* 2.9'N 78* 48.8'W
To From Range 100nm
Leg1 197M 17M
Leg2 287M 107M
Leg3 17M 197M
Leg4 107M 287M
Return to Index

Airport:

-----------------------------------------------

BUFFALO, NY Radio Range E. MagVar -9.7
"BJ" 568 Kc 42* 57.2'N 78* 43'W
To From Range 100nm
Leg1 231M 51M
Leg2 273M 93M
Leg3 51M 231M
Leg4 92M 272M
Return to Index

Airport:

-----------------------------------------------

BURLINGTON, IA Radio Range E. MagVar 1.9
"BN" 606 Kc 40* 45'N 91* 7.5'W
To From Range 100nm
Leg1 180M 0M
Leg2 251M 71M
Leg3 0M 180M
Leg4 55M 235M
Return to Index

Airport:

-----------------------------------------------

BURLINGTON, VT Radio Range E. MagVar -15.2
"JG" 565 Kc 44* 30.6'N 73* 11.5'W
To From Range 100nm
Leg1 210M 30M
Leg2 331M 151M
Leg3 30M 210M
Leg4 169M 349M
Return to Index

Airport:

-----------------------------------------------

CHANUTE, KS Radio Range E. MagVar 5.2
"CZ" 530 Kc 37* 38.8'N 95* 26.9'W
To From Range 100nm
Leg1 185M 5M
Leg2 273M 93M
Leg3 0M 180M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

CHARLESTON, SC Radio Range E. MagVar -5.3
"CS" 552 Kc 32* 50'N 80* 5.2'W
To From Range 100nm
Leg1 201M 21M
Leg2 294M 114M
Leg3 57M 237M
Leg4 114M 294M
Return to Index

Airport:

-----------------------------------------------

CHARLOTTE, NC Radio Range E. MagVar -5.1
"CLT" 212 Kc 35* 10.7'N 80* 56.05'W
To From Range 100nm
Leg1 273M 93M
Leg2 3M 183M
Leg3 93M 273M
Leg4 183M 3M
Return to Index

Airport:

-----------------------------------------------

CHATTANOOGA, TN Radio Range E. MagVar -1.9
"CB" 553 Kc 35* 5'N 85* 10.5'W
To From Range 100nm
Leg1 216M 36M
Leg2 344M 164M
Leg3 53M 233M
Leg4 133M 313M
Return to Index

Airport:

-----------------------------------------------

CHERRY POINT, NC Radio Range E. MagVar -8.2
"NTK" 607 Kc 34* 57.8'N 76* 56.5'W
To From Range 100nm
Leg1 233M 53M
Leg2 323M 143M
Leg3 53M 233M
Leg4 143M 323M
Return to Index

Airport:

-----------------------------------------------

CHICAGO, IL Radio Range E. MagVar -1
"CG" 574 Kc 41* 48.8'N 87* 46.3'W
To From Range 100nm
Leg1 249M 69M
Leg2 335M 155M
Leg3 69M 249M
Leg4 155M 335M
Return to Index

Airport:

-----------------------------------------------

CINCINNATI, OH Radio Range E. MagVar -2.8
"CC" 584 Kc 39* 9.2'N 84* 20.2'W
To From Range 100nm
Leg1 227M 47M
Leg2 299M 119M
Leg3 50M 230M
Leg4 120M 300M
Return to Index

Airport:

-----------------------------------------------

CLEVELAND, OH Radio Range E. MagVar -6.1
"CV" 570 Kc 41* 24.5'N 81* 52.5'W
To From Range 100nm
Leg1 282M 102M
Leg2 327M 147M
Leg3 102M 282M
Leg4 147M 327M
Return to Index

Airport:

-----------------------------------------------

COLUMBIA, MO Radio Range E. MagVar 3
"CA" 531 Kc 38* 58.2'N 92* 26.4'W
To From Range 100nm
Leg1 273M 93M
Leg2 353M 173M
Leg3 102M 282M
Leg4 173M 353M
Return to Index

Airport:

-----------------------------------------------

COLUMBIA, SC Radio Range E. MagVar -4.8
"CI" 608 Kc 33* 57'N 80* 58.5'W
To From Range 100nm
Leg1 273M 93M
Leg2 334M 154M
Leg3 67M 247M
Leg4 154M 334M
Return to Index

Airport:

-----------------------------------------------

COLUMBUS, OH Radio Range E. MagVar -4.9
"CO" 593 Kc 39* 59.2'N 82* 55.5'W
To From Range 100nm
Leg1 215M 35M
Leg2 270M 90M
Leg3 6M 186M
Leg4 89M 269M
Return to Index

Airport:

-----------------------------------------------

CONCORD, NH Radio Range E. MagVar -15.4
"CN" 609 Kc 43* 11'N 71* 28.1'W
To From Range 100nm
Leg1 256M 76M
Leg2 337M 157M
Leg3 76M 256M
Leg4 152M 332M
Return to Index

Airport:

-----------------------------------------------

CORPUS CHRISTI, TX Radio Range E. MagVar 6.9
"CR" 610 Kc 27* 48.1'N 97* 27.9'W
To From Range 100nm
Leg1 269M 89M
Leg2 320M 140M
Leg3 89M 269M
Leg4 140M 320M
Return to Index

Airport:

-----------------------------------------------

CRESTVIEW, FL Radio Range E. MagVar 0.4
"HW" 589 Kc 30* 47.8'N 86* 31'W
To From Range 100nm
Leg1 268M 88M
Leg2 357M 177M
Leg3 87M 267M
Leg4 177M 357M
Return to Index

Airport:

-----------------------------------------------

CROSS CITY, FL Radio Range E. MagVar -2.3
"FC" 611 Kc 29* 35.8'N 83* 3.7'W
To From Range 100nm
Leg1 230M 50M
Leg2 320M 140M
Leg3 50M 230M
Leg4 140M 320M
Return to Index

Airport:

-----------------------------------------------

DAYTON, OH Radio Range E. MagVar -4
"DY" 612 Kc 39* 53.9'N 84* 17'W
To From Range 100nm
Leg1 204M 24M
Leg2 274M 94M
Leg3 24M 204M
Leg4 94M 274M
Return to Index

Airport:

-----------------------------------------------

DAYTONA BEACH, FL Radio Range E. MagVar -3.5
"DB" 536 Kc 29* 11.9'N 81* 5.8'W
To From Range 100nm
Leg1 201M 21M
Leg2 286M 106M
Leg3 21M 201M
Leg4 106M 286M
Return to Index

Airport:

-----------------------------------------------

DES MOINES, IA Radio Range E. MagVar 4.3
"DM" 613 Kc 41* 29.9'N 93* 38.2'W
To From Range 100nm
Leg1 186M 6M
Leg2 261M 81M
Leg3 347M 167M
Leg4 81M 261M
Return to Index

Airport:

-----------------------------------------------

DETROIT, MI Radio Range E. MagVar -5.6
"DT" 573 Kc 42* 14'N 83* 23.1'W
To From Range 100nm
Leg1 269M 89M
Leg2 352M 172M
Leg3 86M 266M
Leg4 167M 347M
Return to Index

Airport:

-----------------------------------------------

DOTHAN, AL Radio Range E. MagVar -1
"DHN" 368 Kc 31* 12'N 85* 29.7'W
To From Range 100nm
Leg1 231M 51M
Leg2 327M 147M
Leg3 67M 247M
Leg4 156M 336M
Return to Index

Airport:

-----------------------------------------------

DULUTH, MN Radio Range E. MagVar 1.7
"DH" 563 Kc 46* 47'N 92* 12.3'W
To From Range 100nm
Leg1 195M 15M
Leg2 271M 91M
Leg3 15M 195M
Leg4 91M 271M
Return to Index

Airport:

-----------------------------------------------

ELKINS, WV Radio Range E. MagVar -7.2
"EK" 614 Kc 38* 56.2'N 79* 52.2'W
To From Range 100nm
Leg1 273M 93M
Leg2 357M 177M
Leg3 86M 266M
Leg4 177M 357M
Return to Index

Airport:

-----------------------------------------------

ELMIRA, NY Radio Range E. MagVar -11
"EA" 579 Kc 42* 8.9'N 76* 55.6'W
To From Range 100nm
Leg1 225M 45M
Leg2 315M 135M
Leg3 45M 225M
Leg4 135M 315M
Return to Index

Airport:

-----------------------------------------------

ERIE, PA Radio Range E. MagVar -8.3
"ER" 580 Kc 42* 3.8'N 80* 13.2'W
To From Range 100nm
Leg1 246M 66M
Leg2 7M 187M
Leg3 75M 255M
Leg4 187M 7M
Return to Index

Airport:

-----------------------------------------------

FARGO, ND Radio Range E. MagVar 6.6
"FO" 575 Kc 46* 54.5'N 96* 47'W
To From Range 100nm
Leg1 262M 82M
Leg2 309M 129M
Leg3 82M 262M
Leg4 162M 342M
Return to Index

Airport:

-----------------------------------------------

FLORENCE, SC Radio Range E. MagVar -5.6
"FLO" 320 Kc 34* 10.9'N 79* 41.5'W
To From Range 100nm
Leg1 236M 56M
Leg2 296M 116M
Leg3 56M 236M
Leg4 116M 296M
Return to Index

Airport:

-----------------------------------------------

FRONT ROYAL, VA Radio Range E. MagVar -8.8
"FZ" 362 Kc 39* 0'N 78* 14'W
To From Range 100nm
Leg1 215M 35M
Leg2 277M 97M
Leg3 29M 209M
Leg4 97M 277M
Return to Index

Airport:

-----------------------------------------------

FT MYERS, FL Radio Range E. MagVar -2.3
"FM" 557 Kc 26* 32.5'N 81* 54'W
To From Range 100nm
Leg1 222M 42M
Leg2 310M 130M
Leg3 42M 222M
Leg4 148M 328M
Return to Index

Airport:

-----------------------------------------------

FT WAYNE, IN Radio Range E. MagVar -3.4
"FWI" 252 Kc 41* 11.2'N 85* 11.5'W
To From Range 100nm
Leg1 241M 61M
Leg2 334M 154M
Leg3 61M 241M
Leg4 151M 331M
Return to Index

Airport:

-----------------------------------------------

FT WORTH, TX Radio Range E. MagVar 6.5
"FV" 532 Kc 32* 51.8'N 97* 21'W
To From Range 100nm
Leg1 184M 4M
Leg2 251M 71M
Leg3 0M 180M
Leg4 73M 253M
Return to Index

Airport:

-----------------------------------------------

GAGE, OK Radio Range E. MagVar 8.3
"VM" 621 Kc 36* 18.5'N 99* 44.5'W
To From Range 100nm
Leg1 227M 47M
Leg2 317M 137M
Leg3 47M 227M
Leg4 137M 317M
Return to Index

Airport:

-----------------------------------------------

GORDONSVILLE, VA Radio Range E. MagVar -8.5
"GJ" 616 Kc 38* 5.4'N 78* 11.8'W
To From Range 100nm
Leg1 249M 69M
Leg2 318M 138M
Leg3 69M 249M
Leg4 138M 318M
Return to Index

Airport:

-----------------------------------------------

GOSHEN, IN Radio Range E. MagVar -2.8
"GO" 572 Kc 41* 31.4'N 85* 51.2'W
To From Range 100nm
Leg1 189M 9M
Leg2 273M 93M
Leg3 9M 189M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

GRAND RAPIDS, MI Radio Range E. MagVar -3.1
"GRR" 329 Kc 42* 52.92'N 85* 37.16'W
To From Range 100nm
Leg1 215M 35M
Leg2 305M 125M
Leg3 35M 215M
Leg4 125M 305M
Return to Index

Airport:

-----------------------------------------------

GREENSBORO, NC Radio Range E. MagVar -6.2
"GW" 551 Kc 36* 6.2'N 79* 54.8'W
To From Range 100nm
Leg1 240M 60M
Leg2 326M 146M
Leg3 64M 244M
Leg4 151M 331M
Return to Index

Airport:

-----------------------------------------------

HARRISBURG, PA Radio Range E. MagVar -10.1
"HX" 582 Kc 40* 13'N 76* 53.1'W
To From Range 100nm
Leg1 196M 16M
Leg2 300M 120M
Leg3 354M 174M
Leg4 106M 286M
Return to Index

Airport:

-----------------------------------------------

HARTFORD, CT Radio Range E. MagVar -14.1
"HT" 329 Kc 41* 42.51'N 72* 37.08'W
To From Range 100nm
Leg1 262M 82M
Leg2 324M 144M
Leg3 65M 245M
Leg4 144M 324M
Return to Index

Airport:

-----------------------------------------------

HOUSTON, TX Radio Range E. MagVar 5.4
"HU" 554 Kc 29* 36.8'N 95* 15'W
To From Range 100nm
Leg1 238M 58M
Leg2 329M 149M
Leg3 50M 230M
Leg4 133M 313M
Return to Index

Airport:

-----------------------------------------------

HUNTINGTON, WV Radio Range E. MagVar -4.3
"HI" 617 Kc 38* 24.6'N 82* 32.7'W
To From Range 100nm
Leg1 257M 77M
Leg2 317M 137M
Leg3 77M 257M
Leg4 137M 317M
Return to Index

Airport:

-----------------------------------------------

INDIANAPOLIS, IN Radio Range E. MagVar -2.2
"ID" 585 Kc 39* 43'N 86* 20.2'W
To From Range 100nm
Leg1 266M 86M
Leg2 1M 181M
Leg3 74M 254M
Leg4 154M 334M
Return to Index

Airport:

-----------------------------------------------

JACKSON, MS Radio Range E. MagVar 2.3
"JA" 543 Kc 32* 22.4'N 90* 12.8'W
To From Range 100nm
Leg1 180M 360M
Leg2 269M 89M
Leg3 357M 177M
Leg4 91M 271M
Return to Index

Airport:

-----------------------------------------------

JACKSONVILLE, FL Radio Range E. MagVar -3
"JX" 555 Kc 30* 25.3'N 81* 35.5'W
To From Range 100nm
Leg1 196M 16M
Leg2 273M 93M
Leg3 342M 162M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

JOLIET, IL Radio Range E. MagVar -1
"JO" 257 Kc 41* 33'N 88* 14.2'W
To From Range 100nm
Leg1 213M 33M
Leg2 309M 129M
Leg3 35M 215M
Leg4 129M 309M
Return to Index

Airport:

-----------------------------------------------

KANSAS CITY, MO Radio Range E. MagVar 5.2
"KC" 586 Kc 39* 10'N 94* 37.3'W
To From Range 100nm
Leg1 235M 55M
Leg2 331M 151M
Leg3 47M 227M
Leg4 151M 331M
Return to Index

Airport:

-----------------------------------------------

KEY WEST, FL Radio Range E. MagVar -1.9
"KW" 558 Kc 24* 33.1'N 81* 47.2'W
To From Range 100nm
Leg1 255M 75M
Leg2 22M 202M
Leg3 104M 284M
Leg4 172M 352M
Return to Index

Airport:

-----------------------------------------------

KNOXVILLE, TN Radio Range E. MagVar -2.9
"KX" 539 Kc 35* 51.3'N 83* 58'W
To From Range 100nm
Leg1 195M 15M
Leg2 246M 66M
Leg3 15M 195M
Leg4 99M 279M
Return to Index

Airport:

-----------------------------------------------

LA GUARDIA, NY Radio Range E. MagVar -12.9
"LG" 590 Kc 40* 25'N 73* 52'W
To From Range 100nm
Leg1 226M 46M
Leg2 316M 136M
Leg3 46M 226M
Leg4 136M 316M
Return to Index

Airport:

-----------------------------------------------

LACROSSE, WI Radio Range E. MagVar 1.4
"LE" 618 Kc 43* 56.5'N 91* 19.2'W
To From Range 100nm
Leg1 240M 60M
Leg2 311M 131M
Leg3 60M 240M
Leg4 124M 304M
Return to Index

Airport:

-----------------------------------------------

LAKE CHARLES, LA Radio Range E. MagVar 4.3
"LC" 619 Kc 31* 10.3'N 93* 8.8'W
To From Range 100nm
Leg1 268M 88M
Leg2 356M 176M
Leg3 80M 260M
Leg4 164M 344M
Return to Index

Airport:

-----------------------------------------------

LANSING, MI Radio Range E. MagVar -4.1
"LJ" 620 Kc 42* 46.3'N 84* 32'W
To From Range 100nm
Leg1 207M 27M
Leg2 292M 112M
Leg3 6M 186M
Leg4 102M 282M
Return to Index

Airport:

-----------------------------------------------

LITTLE ROCK, AR Radio Range E. MagVar 3.3
"LI" 546 Kc 34* 41.1'N 92* 11'W
To From Range 100nm
Leg1 259M 79M
Leg2 317M 137M
Leg3 42M 222M
Leg4 137M 317M
Return to Index

Airport:

-----------------------------------------------

LOUISVILLE, KY Radio Range E. MagVar -1.7
"LV" 528 Kc 38* 13.2'N 85* 38'W
To From Range 100nm
Leg1 184M 4M
Leg2 273M 93M
Leg3 4M 184M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

LYNCHBURG, VA Radio Range E. MagVar -7.3
"LB" 623 Kc 37* 21.6'N 79* 13'W
To From Range 100nm
Leg1 237M 57M
Leg2 348M 168M
Leg3 93M 273M
Leg4 168M 348M
Return to Index

Airport:

-----------------------------------------------

MARTINSBURG, WV Radio Range E. MagVar -8.8
"MR" 624 Kc 39* 22'N 78* 1'W
To From Range 100nm
Leg1 218M 38M
Leg2 284M 104M
Leg3 38M 218M
Leg4 104M 284M
Return to Index

Airport:

-----------------------------------------------

MAXWELL, AL Radio Range E. MagVar -0.5
"XW" 640 Kc 32* 22.8'N 86* 24.3'W
To From Range 100nm
Leg1 181M 1M
Leg2 270M 90M
Leg3 38M 218M
Leg4 90M 270M
Return to Index

Airport:

-----------------------------------------------

MELBOURNE, FL Radio Range E. MagVar -3.3
"OU" 538 Kc 28* 8.6'N 80* 39'W
To From Range 100nm
Leg1 225M 45M
Leg2 342M 162M
Leg3 45M 225M
Leg4 162M 342M
Return to Index

Airport:

-----------------------------------------------

MEMPHIS, TN Radio Range E. MagVar 1.9
"PS" 561 Kc 35* 1'N 89* 59.8'W
To From Range 100nm
Leg1 181M 1M
Leg2 245M 65M
Leg3 4M 184M
Leg4 65M 245M
Return to Index

Airport:

-----------------------------------------------

MERIDIAN, MS Radio Range E. MagVar 1.6
"UM" 588 Kc 32* 22.8'N 88* 50.3'W
To From Range 100nm
Leg1 233M 53M
Leg2 337M 157M
Leg3 86M 266M
Leg4 157M 337M
Return to Index

Airport:

-----------------------------------------------

MIAMI, FL Radio Range E. MagVar -3.5
"MM" 544 Kc 25* 48'N 80* 13.5'W
To From Range 100nm
Leg1 190M 10M
Leg2 276M 96M
Leg3 340M 160M
Leg4 96M 276M
Return to Index

Airport:

-----------------------------------------------

MILLINOCKET, ME Radio Range E. MagVar -19
"MT" 592 Kc 45* 38.9'N 68* 38.35'W
To From Range 100nm
Leg1 219M 39M
Leg2 291M 111M
Leg3 39M 219M
Leg4 111M 291M
Return to Index

Airport:

-----------------------------------------------

MILWAUKEE, WI Radio Range E. MagVar -1.2
"MK" 625 Kc 42* 54.6'N 87* 55.5'W
To From Range 100nm
Leg1 259M 79M
Leg2 1M 181M
Leg3 102M 282M
Leg4 175M 355M
Return to Index

Airport:

-----------------------------------------------

MINNEAPOLIS, MN Radio Range E. MagVar 3.1
"MP" 576 Kc 44* 51.3'N 93* 8.8'W
To From Range 100nm
Leg1 194M 14M
Leg2 300M 120M
Leg3 60M 240M
Leg4 120M 300M
Return to Index

Airport:

-----------------------------------------------

MOBILE, AL Radio Range E. MagVar -1.1
"MS" 541 Kc 30* 40.1'N 88* 7.3'W
To From Range 100nm
Leg1 223M 43M
Leg2 324M 144M
Leg3 73M 253M
Leg4 144M 324M
Return to Index

Airport:

-----------------------------------------------

MOLINE, IL Radio Range E. MagVar 1.7
"MO" 626 Kc 41* 34.8'N 90* 38'W
To From Range 100nm
Leg1 268M 88M
Leg2 357M 177M
Leg3 88M 268M
Leg4 177M 357M
Return to Index

Airport:

-----------------------------------------------

MUSCLE SHOALS, AL Radio Range E. MagVar 0.4
"ED" 641 Kc 34* 46.2'N 87* 39'W
To From Range 100nm
Leg1 190M 10M
Leg2 286M 106M
Leg3 10M 190M
Leg4 106M 286M
Return to Index

Airport:

-----------------------------------------------

NASHVILLE, TN Radio Range E. MagVar -0.5
"NA" 562 Kc 36* 8.1'N 86* 37.7'W
To From Range 100nm
Leg1 250M 70M
Leg2 313M 133M
Leg3 70M 250M
Leg4 155M 335M
Return to Index

Airport:

-----------------------------------------------

NEW ORLEANS, LA Radio Range E. MagVar 2.5
"NO" 559 Kc 30* 2.5'N 89* 59.1'W
To From Range 100nm
Leg1 245M 65M
Leg2 355M 175M
Leg3 90M 270M
Leg4 169M 349M
Return to Index

Airport:

-----------------------------------------------

NEWARK, NJ Radio Range E. MagVar -12.9
"NK" 581 Kc 40* 40.7'N 74* 11'W
To From Range 100nm
Leg1 240M 60M
Leg2 319M 139M
Leg3 60M 240M
Leg4 111M 291M
Return to Index

Airport:

-----------------------------------------------

OKLAHOMA CITY, OK Radio Range E. MagVar 6.8
"OL" 560 Kc 35* 24'N 97* 38.2'W
To From Range 100nm
Leg1 183M 3M
Leg2 261M 81M
Leg3 338M 158M
Leg4 78M 258M
Return to Index

Airport:

-----------------------------------------------

OMAHA, NE Radio Range E. MagVar 5.9
"OH" 577 Kc 41* 19'N 95* 53.8'W
To From Range 100nm
Leg1 256M 76M
Leg2 329M 149M
Leg3 75M 255M
Leg4 156M 336M
Return to Index

Airport:

-----------------------------------------------

PEMBINA, MN Radio Range E. MagVar 6.5
"PB" 642 Kc 48* 55'N 97* 13.4'W
To From Range 100nm
Leg1 174M 354M
Leg2 261M 81M
Leg3 348M 168M
Leg4 81M 261M
Return to Index

Airport:

-----------------------------------------------

PENSACOLA, FL Radio Range E. MagVar 0.5
"KM" 628 Kc 30* 26.5'N 87* 11'W
To From Range 100nm
Leg1 236M 56M
Leg2 345M 165M
Leg3 69M 249M
Leg4 165M 345M
Return to Index

Airport:

-----------------------------------------------

PHILADELPHIA, PA Radio Range E. MagVar -11.5
"PG" 595 Kc 39* 52.3'N 75* 17.8'W
To From Range 100nm
Leg1 256M 76M
Leg2 353M 173M
Leg3 83M 263M
Leg4 183M 3M
Return to Index

Airport:

-----------------------------------------------

PITTSBURGH, PA Radio Range E. MagVar -7.5
"PT" 583 Kc 40* 20.7'N 79* 59'W
To From Range 100nm
Leg1 267M 87M
Leg2 306M 126M
Leg3 87M 267M
Leg4 130M 310M
Return to Index

Airport:

-----------------------------------------------

PORTLAND, ME Radio Range E. MagVar -17.2
"PW" 564 Kc 43* 40.5'N 70* 20.2'W
To From Range 100nm
Leg1 226M 46M
Leg2 329M 149M
Leg3 44M 224M
Leg4 149M 329M
Return to Index

Airport:

-----------------------------------------------

PRESQUE ISLE, ME Radio Range E. MagVar -20.3
"ZQ" 591 Kc 46* 44.1'N 68* 4'W
To From Range 100nm
Leg1 235M 55M
Leg2 303M 123M
Leg3 40M 220M
Leg4 123M 303M
Return to Index

Airport:

-----------------------------------------------

RALEIGH, NC Radio Range E. MagVar -7
"DU" 556 Kc 35* 51.1'N 78* 43.9'W
To From Range 100nm
Leg1 221M 41M
Leg2 302M 122M
Leg3 18M 198M
Leg4 122M 302M
Return to Index

Airport:

-----------------------------------------------

RICHMOND, VA Radio Range E. MagVar -9.3
"RW" 527 Kc 37* 28.5'N 77* 20.1'W
To From Range 100nm
Leg1 317M 137M
Leg2 41M 221M
Leg3 127M 307M
Leg4 186M 6M
Return to Index

Airport:

-----------------------------------------------

ROANOKE, VA Radio Range E. MagVar -6.5
"RO" 631 Kc 37* 17.6'N 79* 57.9'W
To From Range 100nm
Leg1 247M 67M
Leg2 353M 173M
Leg3 76M 256M
Leg4 173M 353M
Return to Index

Airport:

-----------------------------------------------

ROCKFORD, IL Radio Range E. MagVar 0.1
"RD" 632 Kc 42* 20'N 89* 5'W
To From Range 100nm
Leg1 208M 28M
Leg2 317M 137M
Leg3 28M 208M
Leg4 137M 317M
Return to Index

Airport:

-----------------------------------------------

SAN ANTONIO, TX Radio Range E. MagVar 7.4
"ZN" 644 Kc 29* 23.7'N 98* 37.4'W
To From Range 100nm
Leg1 192M 12M
Leg2 317M 137M
Leg3 15M 195M
Leg4 133M 313M
Return to Index

Airport:

-----------------------------------------------

SAVANNAH, GA Radio Range E. MagVar -4.2
"SH" 633 Kc 31* 59.5'N 81* 10.3'W
To From Range 100nm
Leg1 235M 55M
Leg2 337M 157M
Leg3 55M 235M
Leg4 157M 337M
Return to Index

Airport:

-----------------------------------------------

SHREVEPORT, LA Radio Range E. MagVar 4.8
"ZH" 534 Kc 32* 34'N 93* 45.4'W
To From Range 100nm
Leg1 270M 90M
Leg2 342M 162M
Leg3 92M 272M
Leg4 149M 329M
Return to Index

Airport:

-----------------------------------------------

SMITH'S GROVE, KY Radio Range E. MagVar -1.5
"SO" 634 Kc 37* 2.2'N 86* 12.2'W
To From Range 100nm
Leg1 219M 39M
Leg2 292M 112M
Leg3 32M 212M
Leg4 112M 292M
Return to Index

Airport:

-----------------------------------------------

SMITHVILLE, TN Radio Range E. MagVar -1.3
"XM" 347 Kc 35* 59.1'N 85* 47.4'W
To From Range 100nm
Leg1 181M 1M
Leg2 278M 98M
Leg3 1M 181M
Leg4 101M 281M
Return to Index

Airport:

-----------------------------------------------

SOUTH BEND, IN Radio Range E. MagVar -2.8
"SN" 215 Kc 41* 41.6'N 86* 23'W
To From Range 100nm
Leg1 185M 5M
Leg2 258M 78M
Leg3 5M 185M
Leg4 99M 279M
Return to Index

Airport:

-----------------------------------------------

SPARTANBURG, SC Radio Range E. MagVar -4.3
"SU" 540 Kc 34* 54'N 81* 59.1'W
To From Range 100nm
Leg1 242M 62M
Leg2 332M 152M
Leg3 62M 242M
Leg4 152M 332M
Return to Index

Airport:

-----------------------------------------------

SPRING BLUFF, MO Radio Range E. MagVar 2.3
"FF" 344 Kc 38* 20.4'N 91* 11.8'W
To From Range 100nm
Leg1 240M 60M
Leg2 330M 150M
Leg3 60M 240M
Leg4 150M 330M
Return to Index

Airport:

-----------------------------------------------

SPRINGFIELD, IL Radio Range E. MagVar 1.2
"SPJ" 239 Kc 39* 46.1'N 89* 43.8'W
To From Range 100nm
Leg1 206M 26M
Leg2 333M 153M
Leg3 33M 213M
Leg4 153M 333M
Return to Index

Airport:

-----------------------------------------------

SPRINGFIELD, MO Radio Range E. MagVar 3.9
"ZF" 535 Kc 37* 12.3'N 93* 13.9'W
To From Range 100nm
Leg1 229M 49M
Leg2 317M 137M
Leg3 64M 244M
Leg4 137M 317M
Return to Index

Airport:

-----------------------------------------------

ST. LOUIS, MO Radio Range E. MagVar 1.4
"LS" 526 Kc 38* 45.7'N 90* 19.2'W
To From Range 100nm
Leg1 190M 10M
Leg2 253M 73M
Leg3 357M 177M
Leg4 97M 277M
Return to Index

Airport:

-----------------------------------------------

STEWART FIELD, NY Radio Range E. MagVar -13.4
"SW" 236 Kc 41* 31.3'N 74* 8.9'W
To From Range 100nm
Leg1 260M 80M
Leg2 340M 160M
Leg3 65M 245M
Leg4 160M 340M
Return to Index

Airport:

-----------------------------------------------

SYRACUSE, NY Radio Range E. MagVar -12.3
"SR" 571 Kc 43* 6.8'N 76* 16.8'W
To From Range 100nm
Leg1 276M 96M
Leg2 359M 179M
Leg3 98M 278M
Leg4 179M 359M
Return to Index

Airport:

-----------------------------------------------

TALLAHASSEE, FL Radio Range E. MagVar -1.6
"TJ" 533 Kc 30* 26.2'N 84* 23'W
To From Range 100nm
Leg1 192M 12M
Leg2 270M 90M
Leg3 12M 192M
Leg4 121M 301M
Return to Index

Airport:

-----------------------------------------------

TAMPA, FL Radio Range E. MagVar -1.9
"TM" 635 Kc 27* 53.4'N 82* 29.3'W
To From Range 100nm
Leg1 239M 59M
Leg2 359M 179M
Leg3 59M 239M
Leg4 179M 359M
Return to Index

Airport:

-----------------------------------------------

TEXARKANA, AR Radio Range E. MagVar 4.8
"TR" 549 Kc 33* 28.6'N 94* 1.4'W
To From Range 100nm
Leg1 239M 59M
Leg2 306M 126M
Leg3 71M 251M
Leg4 126M 306M
Return to Index

Airport:

-----------------------------------------------

TRAVERSE CITY, MI Radio Range E. MagVar -3.8
"TG" 637 Kc 44* 42.8'N 85* 32.5'W
To From Range 100nm
Leg1 216M 36M
Leg2 321M 141M
Leg3 36M 216M
Leg4 141M 321M
Return to Index

Airport:

-----------------------------------------------

TRI CITIES, TN Radio Range E. MagVar -4.5
"TI" 638 Kc 36* 30'N 82* 20'W
To From Range 100nm
Leg1 248M 68M
Leg2 338M 158M
Leg3 68M 248M
Leg4 158M 338M
Return to Index

Airport:

-----------------------------------------------

TULSA, OK Radio Range E. MagVar 5.9
"TS" 547 Kc 36* 13'N 95* 51.4'W
To From Range 100nm
Leg1 237M 57M
Leg2 308M 128M
Leg3 48M 228M
Leg4 121M 301M
Return to Index

Airport:

-----------------------------------------------

WACO, TX Radio Range E. MagVar 6.5
"WC" 646 Kc 31* 34'N 97* 14.8'W
To From Range 100nm
Leg1 192M 12M
Leg2 312M 132M
Leg3 12M 192M
Leg4 132M 312M
Return to Index

Airport:

-----------------------------------------------

WASHINGTON, DC Radio Range E. MagVar -9.7
"WA" 529 Kc 38* 49.8'N 77* 2.1'W
To From Range 100nm
Leg1 224M 44M
Leg2 315M 135M
Leg3 32M 212M
Leg4 135M 315M
Return to Index

Airport:

-----------------------------------------------

WEEKSVILLE, NC Radio Range E. MagVar -9.3
"NFG" 639 Kc 36* 13.5'N 76* 7.6'W
To From Range 100nm
Leg1 247M 67M
Leg2 322M 142M
Leg3 67M 247M
Leg4 142M 322M
Return to Index

Airport:

-----------------------------------------------

WICHITA FALLS, TX Radio Range E. MagVar 7.1
"WF" 647 Kc 33* 57.5'N 98* 28.5'W
To From Range 100nm
Leg1 207M 27M
Leg2 304M 124M
Leg3 27M 207M
Leg4 109M 289M
Return to Index

Airport:

-----------------------------------------------

WICHITA, KS Radio Range E. MagVar 6.6
"WD" 578 Kc 37* 39.3'N 97* 16.5'W
To From Range 100nm
Leg1 229M 49M
Leg2 350M 170M
Leg3 49M 229M
Leg4 164M 344M
Return to Index

Airport:

-----------------------------------------------

WILKES BARRE, PA Radio Range E. MagVar -11.3
"WI" 648 Kc 41* 20.1'N 75* 46.6'W
To From Range 100nm
Leg1 244M 64M
Leg2 346M 166M
Leg3 64M 244M
Leg4 180M 0M
Return to Index

Airport:

-----------------------------------------------

NARSARSSUAQ BW1 Radio Range E. MagVar -33
"SI" 405 Kc 60* 41.38'N 46* 36.08'W
To From Range 100nm
Leg1 265M 85M
Leg2 292M 112M
Leg3 85M 265M
Leg4 111M 291M
Return to Index

Airport: BGBW 083M/44nm

-----------------------------------------------

STORNOWAY EGPO Radio Range E. MagVar -9.4
"SY" 290 Kc 58* 12.72'N 6* 21.15'W
To From Range 100nm
Leg1 270M 90M
Leg2 350M 170M
Leg3 46M 226M
Leg4 143M 323M
Return to Index

Airport: EGPO 092M/0.8nm

-----------------------------------------------

HILO HI Radio Range E. MagVar 10.7
"ITO" 305 Kc 19* 43.83'N 155* 0.97'W
To From Range 100nm
Leg1 259M 79M
Leg2 342M 162M
Leg3 79M 259M
Leg4 162M 342M
Return to Index

Airport: PHTO R26 223M/0.9nm

-----------------------------------------------

HONOLULU HI Radio Range E. MagVar 10.9
"HNL" 344 Kc 21* 19.53'N 158* 0.9'W
To From Range 100nm
Leg1 231M 51M
Leg2 349M 169M
Leg3 70M 250M
Leg4 169M 349M
Return to Index

Airport: PHNL R08L 079M/4.0nm

-----------------------------------------------

MAUI HI Radio Range E. MagVar 10.9
"MAU" 209 Kc 20* 37.86'N 156* 26.76'W
To From Range 100nm
Leg1 285M 105M
Leg2 344M 164M
Leg3 105M 285M
Leg4 164M 344M
Return to Index

Airport: PHOG 352M/16.1nm

-----------------------------------------------

PORT ALLEN HI Radio Range E. MagVar 11
"PAK" 227 Kc 21* 53.63'N 159* 29.94'W
To From Range 100nm
Leg1 289M 109M
Leg2 349M 169M
Leg3 101M 281M
Leg4 169M 349M
Return to Index

Airport: PHLI 050M/10.2nm

-----------------------------------------------

ABERDEEN, SD Radio Range E. MagVar 7.4
"ABR" 329 Kc 45* 24.94'N 98* 22.76'W
To From Range 100nm
Leg1 293M 113M
Leg2 345M 165M
Leg3 113M 293M
Leg4 165M 345M
Return to Index

Airport:

-----------------------------------------------

ABILENE, TX Radio Range E. MagVar 8
"AP" 379 Kc 32* 27.99'N 99* 40.59'W
To From Range 100nm
Leg1 183M 3M
Leg2 250M 70M
Leg3 3M 183M
Leg4 73M 253M
Return to Index

Airport:

-----------------------------------------------

AKRON, CO Radio Range E. MagVar 10.4
"RN" 368 Kc 40* 10.84'N 103* 11'W
To From Range 100nm
Leg1 247M 67M
Leg2 337M 157M
Leg3 67M 247M
Leg4 157M 337M
Return to Index

Airport:

-----------------------------------------------

ALBUQUERQUE, NM Radio Range E. MagVar 11.1
"AB" 230 Kc 34* 59.3'N 106* 37.2'W
To From Range 100nm
Leg1 177M 357M
Leg2 254M 74M
Leg3 357M 177M
Leg4 83M 263M
Return to Index

Airport:

-----------------------------------------------

AMARILLO, TX Radio Range E. MagVar 9.2
"AMA" 551 Kc 35* 13.82'N 101* 44.68'W
To From Range 100nm
Leg1 173M 353M
Leg2 258M 78M
Leg3 353M 173M
Leg4 80M 260M
Return to Index

Airport:

-----------------------------------------------

BAKER, OR Radio Range E. MagVar 17.7
"BK" 221 Kc 44* 48.26'N 117* 46.14'W
To From Range 100nm
Leg1 210M 30M
Leg2 298M 118M
Leg3 30M 210M
Leg4 122M 302M
Return to Index

Airport:

-----------------------------------------------

BAKERSFIELD, CA Radio Range E. MagVar 14.6
"BD" 239 Kc 35* 27'N 119* 4'W
To From Range 100nm
Leg1 232M 52M
Leg2 322M 142M
Leg3 52M 232M
Leg4 142M 322M
Return to Index

Airport:

-----------------------------------------------

BELLINGHAM, WA Radio Range E. MagVar 20.8
"JJ" 209 Kc 48* 50'N 122* 33'W
To From Range 100nm
Leg1 222M 42M
Leg2 324M 144M
Leg3 42M 222M
Leg4 112M 292M
Return to Index

Airport:

-----------------------------------------------

BILLINGS, MT Radio Range E. MagVar 14.5
"BIL" 400 Kc 45* 49'N 108* 30'W
To From Range 100nm
Leg1 232M 52M
Leg2 300M 120M
Leg3 70M 250M
Leg4 149M 329M
Return to Index

Airport:

-----------------------------------------------

BLYTHE, CA Radio Range E. MagVar 13.2
"YH" 251 Kc 33* 36.53'N 114* 39.35'W
To From Range 100nm
Leg1 167M 347M
Leg2 260M 80M
Leg3 347M 167M
Leg4 87M 267M
Return to Index

Airport:

-----------------------------------------------

BOISE, ID Radio Range E. MagVar 16.8
"BE" 350 Kc 43* 35.59'N 116* 16.86'W
To From Range 100nm
Leg1 208M 28M
Leg2 292M 112M
Leg3 28M 208M
Leg4 123M 303M
Return to Index

Airport:

-----------------------------------------------

BOZEMAN, MT Radio Range E. MagVar 15.8
"BL" 329 Kc 45* 49.91'N 111* 11.67'W
To From Range 100nm
Leg1 275M 95M
Leg2 325M 145M
Leg3 79M 259M
Leg4 145M 325M
Return to Index

Airport:

-----------------------------------------------

BURLEY, ID Radio Range E. MagVar 15.6
"BX" 272 Kc 42* 34.89'N 113* 44.24'W
To From Range 100nm
Leg1 201M 21M
Leg2 272M 92M
Leg3 14M 194M
Leg4 94M 274M
Return to Index

Airport:

-----------------------------------------------

BUTTE, MT Radio Range E. MagVar 16.4
"BT" 233 Kc 45* 54.79'N 112* 30.71'W
To From Range 100nm
Leg1 190M 10M
Leg2 259M 79M
Leg3 352M 172M
Leg4 105M 285M
Return to Index

Airport:

-----------------------------------------------

CASPER, WY Radio Range E. MagVar 12.6
"CW" 269 Kc 42* 54.53'N 106* 23.11'W
To From Range 100nm
Leg1 258M 78M
Leg2 341M 161M
Leg3 78M 258M
Leg4 161M 341M
Return to Index

Airport:

-----------------------------------------------

CHEYENNE, WY Radio Range E. MagVar 11.4
"CX" 326 Kc 41* 9.45'N 104* 51.97'W
To From Range 100nm
Leg1 259M 79M
Leg2 350M 170M
Leg3 105M 285M
Leg4 164M 344M
Return to Index

Airport:

-----------------------------------------------

DAGGETT, CA Radio Range E. MagVar 14
"DG" 365 Kc 34* 51'N 116* 50'W
To From Range 100nm
Leg1 253M 73M
Leg2 331M 151M
Leg3 65M 245M
Leg4 151M 331M
Return to Index

Airport:

-----------------------------------------------

DALLAS, TX Radio Range E. MagVar 6.5
"DL" 563 Kc 32* 48.13'N 96* 49.85'W
To From Range 100nm
Leg1 269M 89M
Leg2 359M 179M
Leg3 82M 262M
Leg4 160M 340M
Return to Index

Airport:

-----------------------------------------------

DELTA, UT Radio Range E. MagVar 14.2
"VZ" 212 Kc 39* 20.24'N 112* 31.41'W
To From Range 100nm
Leg1 190M 10M
Leg2 280M 100M
Leg3 10M 190M
Leg4 100M 280M
Return to Index

Airport:

-----------------------------------------------

DENVER, CO Radio Range E. MagVar 11.2
"DV" 379 Kc 39* 48.1'N 104* 53.1'W
To From Range 100nm
Leg1 171M 351M
Leg2 242M 62M
Leg3 338M 158M
Leg4 62M 242M
Return to Index

Airport:

-----------------------------------------------

DICKINSON, ND Radio Range E. MagVar 11.2
"DC" 308 Kc 46* 50.3'N 102* 48.54'W
To From Range 100nm
Leg1 171M 351M
Leg2 260M 80M
Leg3 351M 171M
Leg4 73M 253M
Return to Index

Airport:

-----------------------------------------------

DUBOIS, ID Radio Range E. MagVar 15.6
"DZ" 388 Kc 44* 8'N 112* 13.04'W
To From Range 100nm
Leg1 254M 74M
Leg2 354M 174M
Leg3 74M 254M
Leg4 153M 333M
Return to Index

Airport:

-----------------------------------------------

EL CENTRO, CA Radio Range E. MagVar 13.1
"MB" 212 Kc 32* 46'N 115* 39'W
To From Range 100nm
Leg1 258M 78M
Leg2 322M 142M
Leg3 77M 257M
Leg4 142M 322M
Return to Index

Airport:

-----------------------------------------------

EL MORRO, NM Radio Range E. MagVar 11.9
"EM" 278 Kc 35* 1.4'N 108* 23.9'W
To From Range 100nm
Leg1 170M 350M
Leg2 260M 80M
Leg3 350M 170M
Leg4 80M 260M
Return to Index

Airport:

-----------------------------------------------

EL PASO, TX Radio Range E. MagVar 10.5
"EO" 242 Kc 31* 47.98'N 106* 19.5'W
To From Range 100nm
Leg1 259M 79M
Leg2 345M 165M
Leg3 81M 261M
Leg4 165M 345M
Return to Index

Airport:

-----------------------------------------------

ELKO, NV Radio Range E. MagVar 15.7
"EL" 391 Kc 40* 50'N 115* 47'W
To From Range 100nm
Leg1 221M 41M
Leg2 322M 142M
Leg3 52M 232M
Leg4 142M 322M
Return to Index

Airport:

-----------------------------------------------

ELLENSBURG, WA Radio Range E. MagVar 19.4
"EB" 385 Kc 47* 1.25'N 120* 29.2'W
To From Range 100nm
Leg1 178M 358M
Leg2 232M 52M
Leg3 345M 165M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

ENTERPRISE, UT Radio Range E. MagVar 14.1
"NP" 341 Kc 37* 39.76'N 113* 41.06'W
To From Range 100nm
Leg1 202M 22M
Leg2 292M 112M
Leg3 20M 200M
Leg4 112M 292M
Return to Index

Airport:

-----------------------------------------------

EPHRATA, WA Radio Range E. MagVar 19.3
"EP" 269 Kc 47* 14'N 119* 30'W
To From Range 100nm
Leg1 234M 54M
Leg2 339M 159M
Leg3 52M 232M
Leg4 159M 339M
Return to Index

Airport:

-----------------------------------------------

EUGENE, OR Radio Range E. MagVar 18.6
"EU" 251 Kc 44* 11.49'N 123* 13.87'W
To From Range 100nm
Leg1 179M 359M
Leg2 247M 67M
Leg3 333M 153M
Leg4 67M 247M
Return to Index

Airport:

-----------------------------------------------

FORT JONES, CA Radio Range E. MagVar 17.5
"FJ" 224 Kc 41* 31.92'N 122* 51.8'W
To From Range 100nm
Leg1 243M 63M
Leg2 323M 143M
Leg3 63M 243M
Leg4 162M 342M
Return to Index

Airport:

-----------------------------------------------

FRESNO, CA Radio Range E. MagVar 15.2
"FT" 544 Kc 36* 43'N 119* 48'W
To From Range 100nm
Leg1 205M 25M
Leg2 318M 138M
Leg3 25M 205M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

GARDEN CITY, KS Radio Range E. MagVar 8.8
"GK" 257 Kc 38* 1'N 100* 49'W
To From Range 100nm
Leg1 171M 351M
Leg2 263M 83M
Leg3 351M 171M
Leg4 83M 263M
Return to Index

Airport:

-----------------------------------------------

GILA BEND, AZ Radio Range E. MagVar 12.5
"UQ" 257 Kc 32* 57.4'N 112* 43.4'W
To From Range 100nm
Leg1 168M 348M
Leg2 264M 84M
Leg3 348M 168M
Leg4 71M 251M
Return to Index

Airport:

-----------------------------------------------

GRAND ISLAND, NE Radio Range E. MagVar 7.5
"GI" 260 Kc 41* 1.7'N 98* 19.15'W
To From Range 100nm
Leg1 253M 73M
Leg2 349M 169M
Leg3 73M 253M
Leg4 169M 349M
Return to Index

Airport:

-----------------------------------------------

GREAT FALLS, MT Radio Range E. MagVar 16.5
"GT" 317 Kc 47* 26.71'N 111* 24.65'W
To From Range 100nm
Leg1 201M 21M
Leg2 270M 90M
Leg3 26M 206M
Leg4 136M 316M
Return to Index

Airport:

-----------------------------------------------

HAYES CENTER, NE Radio Range E. MagVar 9.1
"KB" 303 Kc 40* 30'N 101* 0'W
To From Range 100nm
Leg1 247M 67M
Leg2 338M 158M
Leg3 69M 249M
Leg4 158M 338M
Return to Index

Airport:

-----------------------------------------------

HELENA, MT Radio Range E. MagVar 16.4
"HL" 371 Kc 46* 36'N 111* 56'W
To From Range 100nm
Leg1 169M 349M
Leg2 283M 103M
Leg3 1M 181M
Leg4 75M 255M
Return to Index

Airport:

-----------------------------------------------

HURON, SD Radio Range E. MagVar 7.6
"HR" 353 Kc 44* 21.85'N 98* 16.21'W
To From Range 100nm
Leg1 227M 47M
Leg2 296M 116M
Leg3 47M 227M
Leg4 116M 296M
Return to Index

Airport:

-----------------------------------------------

HUTCHINSON, KS Radio Range E. MagVar 7.1
"HN" 284 Kc 38* 1'N 97* 52'W
To From Range 100nm
Leg1 173M 353M
Leg2 263M 83M
Leg3 3M 183M
Leg4 83M 263M
Return to Index

Airport:

-----------------------------------------------

KINGMAN, AZ Radio Range E. MagVar 13.5
"KI" 347 Kc 35* 11'N 114* 1'W
To From Range 100nm
Leg1 260M 80M
Leg2 347M 167M
Leg3 60M 240M
Leg4 128M 308M
Return to Index

Airport:

-----------------------------------------------

KLAMATH FALLS, OR Radio Range E. MagVar 17.5
"FS" 242 Kc 42* 7.3'N 121* 43.9'W
To From Range 100nm
Leg1 165M 345M
Leg2 246M 66M
Leg3 345M 165M
Leg4 76M 256M
Return to Index

Airport:

-----------------------------------------------

LARAMIE, WY Radio Range E. MagVar 12
"LR" 245 Kc 41* 20.91'N 105* 42.21'W
To From Range 100nm
Leg1 230M 50M
Leg2 320M 140M
Leg3 50M 230M
Leg4 140M 320M
Return to Index

Airport:

-----------------------------------------------

LAS VEGAS, NV Radio Range E. MagVar 13.9
"LQ" 206 Kc 36* 13'N 115* 5'W
To From Range 100nm
Leg1 210M 30M
Leg2 307M 127M
Leg3 27M 207M
Leg4 114M 294M
Return to Index

Airport:

-----------------------------------------------

LEWISTOWN, MT Radio Range E. MagVar 15.3
"IT" 354 Kc 47* 3.8'N 109* 30.98'W
To From Range 100nm
Leg1 201M 21M
Leg2 274M 94M
Leg3 21M 201M
Leg4 94M 274M
Return to Index

Airport:

-----------------------------------------------

LIVINGSTON, MT Radio Range E. MagVar 15.4
"LT" 224 Kc 45* 41.37'N 110* 27.04'W
To From Range 100nm
Leg1 250M 70M
Leg2 316M 136M
Leg3 70M 250M
Leg4 136M 316M
Return to Index

Airport:

-----------------------------------------------

LONG BEACH, CA Radio Range E. MagVar 14
"LG" 233 Kc 33* 45.4'N 118* 4.64'W
To From Range 100nm
Leg1 210M 30M
Leg2 300M 120M
Leg3 30M 210M
Leg4 120M 300M
Return to Index

Airport:

-----------------------------------------------

LOS ANGELES, CA Radio Range E. MagVar 14
"LA" 260 Kc 33* 56.74'N 118* 20.42'W
To From Range 100nm
Leg1 259M 79M
Leg2 324M 144M
Leg3 66M 246M
Leg4 144M 324M
Return to Index

Airport:

-----------------------------------------------

LUBBOCK, TX Radio Range E. MagVar 9
"DHH" 224 Kc 33* 39.4'N 102* 1.8'W
To From Range 100nm
Leg1 176M 356M
Leg2 261M 81M
Leg3 356M 176M
Leg4 81M 261M
Return to Index

Airport:

-----------------------------------------------

MARFA, TX Radio Range E. MagVar 9.4
"DMT" 293 Kc 30* 18.2'N 103* 57'W
To From Range 100nm
Leg1 229M 49M
Leg2 301M 121M
Leg3 49M 229M
Leg4 121M 301M
Return to Index

Airport:

-----------------------------------------------

MEDFORD, OR Radio Range E. MagVar 17.9
"MFO" 263 Kc 42* 25.17'N 122* 52.86'W
To From Range 100nm
Leg1 257M 77M
Leg2 340M 160M
Leg3 77M 257M
Leg4 154M 334M
Return to Index

Airport:

-----------------------------------------------

MILES CITY, MT Radio Range E. MagVar 13.2
"MY" 520 Kc 46* 24.5'N 105* 55.9'W
To From Range 100nm
Leg1 241M 61M
Leg2 329M 149M
Leg3 63M 243M
Leg4 145M 325M
Return to Index

Airport:

-----------------------------------------------

MILFORD, UT Radio Range E. MagVar 14.1
"MD" 320 Kc 38* 23.41'N 113* 1.82'W
To From Range 100nm
Leg1 190M 10M
Leg2 280M 100M
Leg3 10M 190M
Leg4 100M 280M
Return to Index

Airport:

-----------------------------------------------

MISSOULA, MT Radio Range E. MagVar 17.2
"MX" 308 Kc 46* 56'N 114* 8'W
To From Range 100nm
Leg1 279M 99M
Leg2 337M 157M
Leg3 99M 279M
Leg4 162M 342M
Return to Index

Airport:

-----------------------------------------------

MODESTO, CA Radio Range E. MagVar 15.8
"MOD" 567 Kc 37* 34.38'N 120* 51.31'W
To From Range 100nm
Leg1 245M 65M
Leg2 300M 120M
Leg3 82M 262M
Leg4 132M 312M
Return to Index

Airport:

-----------------------------------------------

NEAH BAY, WA Radio Range E. MagVar 20.8
"KQ" 362 Kc 48* 21.3'N 124* 33.9'W
To From Range 100nm
Leg1 181M 1M
Leg2 260M 80M
Leg3 1M 181M
Leg4 102M 282M
Return to Index

Airport:

-----------------------------------------------

NEWHALL, CA Radio Range E. MagVar 14.1
"EHA" 209 Kc 34* 23.3'N 118* 32.15'W
To From Range 100nm
Leg1 223M 43M
Leg2 319M 139M
Leg3 43M 223M
Leg4 139M 319M
Return to Index

Airport:

-----------------------------------------------

NORTH DALLES, OR Radio Range E. MagVar 18.9
"ND" 230 Kc 45* 37.01'N 121* 6.67'W
To From Range 100nm
Leg1 187M 7M
Leg2 257M 77M
Leg3 345M 165M
Leg4 78M 258M
Return to Index

Airport:

-----------------------------------------------

NORTH PLATTE, NE Radio Range E. MagVar 9.1
"NQ" 236 Kc 41* 5'N 100* 42'W
To From Range 100nm
Leg1 175M 355M
Leg2 263M 83M
Leg3 350M 170M
Leg4 83M 263M
Return to Index

Airport:

-----------------------------------------------

OAKLAND, CA Radio Range E. MagVar 15.9
"OA" 535 Kc 37* 44.55'N 122* 13.23'W
To From Range 100nm
Leg1 201M 21M
Leg2 305M 125M
Leg3 21M 201M
Leg4 125M 305M
Return to Index

Airport:

-----------------------------------------------

OGDEN, UT Radio Range E. MagVar 14.5
"OGD" 263 Kc 41* 17.67'N 112* 10.04'W
To From Range 100nm
Leg1 247M 67M
Leg2 319M 139M
Leg3 82M 262M
Leg4 155M 335M
Return to Index

Airport:

-----------------------------------------------

PALMDALE, CA Radio Range E. MagVar 14.2
"PA" 332 Kc 34* 39'N 118* 3'W
To From Range 100nm
Leg1 218M 38M
Leg2 276M 96M
Leg3 43M 223M
Leg4 96M 276M
Return to Index

Airport:

-----------------------------------------------

PENDLETON, OR Radio Range E. MagVar 18.4
"PO" 341 Kc 45* 42.08'N 118* 47.05'W
To From Range 100nm
Leg1 253M 73M
Leg2 304M 124M
Leg3 59M 239M
Leg4 124M 304M
Return to Index

Airport:

-----------------------------------------------

PHOENIX, AZ Radio Range E. MagVar 12.5
"PH" 326 Kc 33* 25.72'N 111* 57.88'W
To From Range 100nm
Leg1 263M 83M
Leg2 336M 156M
Leg3 83M 263M
Leg4 156M 336M
Return to Index

Airport:

-----------------------------------------------

PIERRE, SD Radio Range E. MagVar 9.1
"PX" 347 Kc 44* 23'N 100* 12'W
To From Range 100nm
Leg1 266M 86M
Leg2 351M 171M
Leg3 72M 252M
Leg4 166M 346M
Return to Index

Airport:

-----------------------------------------------

POCATELLO, ID Radio Range E. MagVar 15.3
"PQ" 257 Kc 42* 52.22'N 112* 36.69'W
To From Range 100nm
Leg1 179M 359M
Leg2 239M 59M
Leg3 329M 149M
Leg4 59M 239M
Return to Index

Airport:

-----------------------------------------------

PORTLAND, OR Radio Range E. MagVar 19.2
"PD" 532 Kc 45* 38.5'N 122* 36'W
To From Range 100nm
Leg1 246M 66M
Leg2 359M 179M
Leg3 63M 243M
Leg4 154M 334M
Return to Index

Airport:

-----------------------------------------------

PUEBLO, CO Radio Range E. MagVar 11
"PUB" 502 Kc 38* 14.67'N 104* 30.09'W
To From Range 100nm
Leg1 262M 82M
Leg2 346M 166M
Leg3 82M 262M
Leg4 167M 347M
Return to Index

Airport:

-----------------------------------------------

RAPID CITY, SD Radio Range E. MagVar 11
"RZ" 221 Kc 44* 3.2'N 103* 5.3'W
To From Range 100nm
Leg1 249M 69M
Leg2 349M 169M
Leg3 69M 249M
Leg4 168M 348M
Return to Index

Airport:

-----------------------------------------------

RED BLUFF, CA Radio Range E. MagVar 16.8
"FH" 362 Kc 40* 6.84'N 122* 14.25'W
To From Range 100nm
Leg1 242M 62M
Leg2 339M 159M
Leg3 62M 242M
Leg4 145M 325M
Return to Index

Airport:

-----------------------------------------------

REDMOND, OR Radio Range E. MagVar 18.2
"RG" 368 Kc 44* 18'N 121* 13.8'W
To From Range 100nm
Leg1 179M 359M
Leg2 284M 104M
Leg3 359M 179M
Leg4 104M 284M
Return to Index

Airport:

-----------------------------------------------

RENO, NV Radio Range E. MagVar 16.2
"RP" 254 Kc 39* 32.8'N 119* 46.1'W
To From Range 100nm
Leg1 230M 50M
Leg2 343M 163M
Leg3 50M 230M
Leg4 163M 343M
Return to Index

Airport:

-----------------------------------------------

RIVERSIDE, CA Radio Range E. MagVar 13.8
"RIV" 388 Kc 33* 56'N 117* 18'W
To From Range 100nm
Leg1 256M 76M
Leg2 325M 145M
Leg3 77M 257M
Leg4 148M 328M
Return to Index

Airport:

-----------------------------------------------

ROCK SPRINGS, WY Radio Range E. MagVar 13.5
"RT" 290 Kc 41* 36'N 109* 0'W
To From Range 100nm
Leg1 249M 69M
Leg2 339M 159M
Leg3 69M 249M
Leg4 159M 339M
Return to Index

Airport:

-----------------------------------------------

RODEO, NM Radio Range E. MagVar 11.4
"RH" 254 Kc 31* 56.84'N 109* 0.21'W
To From Range 100nm
Leg1 206M 26M
Leg2 263M 83M
Leg3 26M 206M
Leg4 83M 263M
Return to Index

Airport:

-----------------------------------------------

ROSWELL, NM Radio Range E. MagVar 10
"DEH" 305 Kc 33* 17.9'N 104* 27.5'W
To From Range 100nm
Leg1 219M 39M
Leg2 296M 116M
Leg3 38M 218M
Leg4 125M 305M
Return to Index

Airport:

-----------------------------------------------

SACRAMENTO, CA Radio Range E. MagVar 16
"SAC" 236 Kc 38* 28.76'N 121* 31.71'W
To From Range 100nm
Leg1 204M 24M
Leg2 309M 129M
Leg3 20M 200M
Leg4 126M 306M
Return to Index

Airport:

-----------------------------------------------

SALT LAKE CITY, UT Radio Range E. MagVar 14.4
"SL" 227 Kc 40* 49'N 111* 57'W
To From Range 100nm
Leg1 249M 69M
Leg2 346M 166M
Leg3 69M 249M
Leg4 155M 335M
Return to Index

Airport:

-----------------------------------------------

SAN DIEGO, CA Radio Range E. MagVar 13.4
"SQ" 244 Kc 32* 46'N 117* 12.16'W
To From Range 100nm
Leg1 257M 77M
Leg2 321M 141M
Leg3 81M 261M
Leg4 147M 327M
Return to Index

Airport:

-----------------------------------------------

SAN FRANCISCO, CA Radio Range E. MagVar 15.4
"SF" 227 Kc 37* 34.9'N 122* 19.7'W
To From Range 100nm
Leg1 201M 21M
Leg2 289M 109M
Leg3 21M 201M
Leg4 113M 293M
Return to Index

Airport:

-----------------------------------------------

SEATTLE, WA Radio Range E. MagVar 20
"SA" 260 Kc 47* 29.64'N 122* 15.69'W
To From Range 100nm
Leg1 271M 91M
Leg2 358M 178M
Leg3 119M 299M
Leg4 158M 338M
Return to Index

Airport:

-----------------------------------------------

SHERIDAN, WY Radio Range E. MagVar 13.4
"ZY" 239 Kc 44* 44.9'N 106* 55.9'W
To From Range 100nm
Leg1 210M 30M
Leg2 300M 120M
Leg3 30M 210M
Leg4 120M 300M
Return to Index

Airport:

-----------------------------------------------

SILVER LAKE, CA Radio Range E. MagVar 13.9
"SIL" 269 Kc 35* 21.5'N 116* 7.1'W
To From Range 100nm
Leg1 217M 37M
Leg2 314M 134M
Leg3 34M 214M
Leg4 134M 314M
Return to Index

Airport:

-----------------------------------------------

SINCLAIR, WY Radio Range E. MagVar 12.7
"XP" 209 Kc 41* 49.17'N 107* 8.99'W
To From Range 100nm
Leg1 262M 82M
Leg2 346M 166M
Leg3 69M 249M
Leg4 166M 346M
Return to Index

Airport:

-----------------------------------------------

SIOUX FALLS, SD Radio Range E. MagVar 6.4
"YL" 545 Kc 43* 33.55'N 96* 47.04'W
To From Range 100nm
Leg1 236M 56M
Leg2 339M 159M
Leg3 56M 236M
Leg4 120M 300M
Return to Index

Airport:

-----------------------------------------------

SPOKANE, WA Radio Range E. MagVar 18.9
"SM" 565 Kc 47* 39.8'N 117* 19.39'W
To From Range 100nm
Leg1 184M 4M
Leg2 241M 61M
Leg3 4M 184M
Leg4 59M 239M
Return to Index

Airport:

-----------------------------------------------

TRINIDAD, CO Radio Range E. MagVar 10.4
"TD" 529 Kc 37* 18.7'N 104* 19.3'W
To From Range 100nm
Leg1 277M 97M
Leg2 353M 173M
Leg3 74M 254M
Leg4 155M 335M
Return to Index

Airport:

-----------------------------------------------

TUCSON, AZ Radio Range E. MagVar 11.8
"TZ" 338 Kc 32* 7.92'N 110* 50.91'W
To From Range 100nm
Leg1 209M 29M
Leg2 288M 108M
Leg3 29M 209M
Leg4 129M 309M
Return to Index

Airport:

-----------------------------------------------

TUCUMCARI, NM Radio Range E. MagVar 9.9
"TC" 212 Kc 35* 10.9'N 103* 39.2'W
To From Range 100nm
Leg1 259M 79M
Leg2 330M 150M
Leg3 79M 259M
Leg4 169M 349M
Return to Index

Airport:

-----------------------------------------------

WATERTOWN, SD Radio Range E. MagVar 6.7
"WU" 382 Kc 44* 55'N 97* 5'W
To From Range 100nm
Leg1 259M 79M
Leg2 349M 169M
Leg3 79M 259M
Leg4 169M 349M
Return to Index

Airport:

-----------------------------------------------

WHITMORE, CA Radio Range E. MagVar 17
"AWH" 353 Kc 40* 37.3'N 121* 59.9'W
To From Range 100nm
Leg1 183M 3M
Leg2 273M 93M
Leg3 3M 183M
Leg4 93M 273M
Return to Index

Airport:

-----------------------------------------------

WILLIAMS, CA Radio Range E. MagVar 16.4
"WS" 326 Kc 39* 6'N 122* 6.3'W
To From Range 100nm
Leg1 246M 66M
Leg2 335M 155M
Leg3 66M 246M
Leg4 158M 338M
Return to Index

Airport:

-----------------------------------------------

WINK, TX Radio Range E. MagVar 9.3
"WP" 260 Kc 31* 45.1'N 103* 11.9'W
To From Range 100nm
Leg1 176M 356M
Leg2 243M 63M
Leg3 325M 145M
Leg4 84M 264M
Return to Index

Airport:

-----------------------------------------------

WINSLOW, AZ Radio Range E. MagVar 12.5
"WO" 266 Kc 35* 1.67'N 110* 46.89'W
To From Range 100nm
Leg1 256M 76M
Leg2 341M 161M
Leg3 76M 256M
Leg4 161M 341M
Return to Index

Airport:

-----------------------------------------------

ASHFORK, AZ Radio Range E. MagVar 12.5
"FK" 382 Kc 35* 13.6'N 112* 33.2'W
To From Range 100nm
Leg1 258M 78M
Leg2 328M 148M
Leg3 78M 258M
Leg4 148M 328M
Return to Index

Airport:

-----------------------------------------------

ADAK		Radio Range	E. MagVar 8.1
"NCI"	347 Kc	51* 54.83'N	176* 33.49'W
	To	From	Range 100nm
Leg1	211M	31M
Leg2	300M	120M
Leg3	45M	225M
Leg4	120M	300M
Return to Index

ALEXAI POINT		Radio Range	E. MagVar 2.1
"AOG"	323 Kc	52* 48.45'N	-173* -18.33'W
	To	From	Range 100nm
Leg1	189M	9M
Leg2	272M	92M
Leg3	9M	189M
Leg4	100M	280M
Return to Index

AMCHITKA		Radio Range	E. MagVar 5.4
"CH"	359 Kc	51* 23.17'N	-179* -21.48'W
	To	From	Range 100nm
Leg1	261M	81M
Leg2	346M	166M
Leg3	76M	256M
Leg4	166M	346M
Return to Index

ANCHORAGE		Radio Range	E. MagVar 24.5
"HQ"	338 Kc	61* 10.24'N	149* 49.63'W
	To	From	Range 100nm
Leg1	194M	14M
Leg2	283M	103M
Leg3	13M	193M
Leg4	103M	283M
Return to Index

ANIAK		Radio Range	E. MagVar 19.6
"NZ"	326 Kc	61* 34.62'N	159* 36.29'W
	To	From	Range 100nm
Leg1	211M	31M
Leg2	301M	121M
Leg3	31M	211M
Leg4	121M	301M
Return to Index

ANNETTE ISLAND		Radio Range	E. MagVar 25.5
"TN"	267 Kc	54* 59.53'N	131* 31.28'W
	To	From	Range 100nm
Leg1	291M	111M
Leg2	341M	161M
Leg3	111M	291M
Leg4	138M	318M
Return to Index

ATKA		Radio Range	E. MagVar 9.8
"NCY"	251 Kc	52* 14.18'N	174* 3.41'W
	To	From	Range 100nm
Leg1	172M	352M
Leg2	235M	55M
Leg3	352M	172M
Leg4	82M	262M
Return to Index

ATTU		Radio Range	E. MagVar 2.1
"ALM"	358 Kc	52* 51.51'N	-173* -12.08'W
	To	From	Range 100nm
Leg1	201M	21M
Leg2	308M	128M
Leg3	21M	201M
Leg4	128M	308M
Return to Index

BETHEL		Radio Range	E. MagVar 18.1
"UB"	388 Kc	60* 44.64'N	161* 39.67'W
	To	From	Range 100nm
Leg1	209M	29M
Leg2	299M	119M
Leg3	29M	209M
Leg4	119M	299M
Return to Index

BETTLES		Radio Range	E. MagVar 26.5
"BTT"	392 Kc	66* 51.67'N	151* 37.01'W
	To	From	Range 100nm
Leg1	246M	66M
Leg2	281M	101M
Leg3	66M	246M
Leg4	151M	331M
Return to Index

BIG DELTA		Radio Range	E. MagVar 28
"JQ"	379 Kc	64* 1.45'N	145* 41.32'W
	To	From	Range 100nm
Leg1	161M	341M
Leg2	267M	87M
Leg3	341M	161M
Leg4	95M	275M
Return to Index

BIRCHWOOD		Radio Range	E. MagVar 25
"UBW"	239 Kc	61* 23.94'N	149* 31.99'W
	To	From	Range 100nm
Leg1	194M	14M
Leg2	284M	104M
Leg3	342M	162M
Leg4	62M	242M
Return to Index

CAPE KHLEBNIKOF		Radio Range	E. MagVar 2
"AUN"	266 Kc	52* 54.33'N	-172* -28.44'W
	To	From	Range 100nm
Leg1	188M	8M
Leg2	277M	97M
Leg3	8M	188M
Leg4	122M	302M
Return to Index

CHIRIKOF ISLAND		Radio Range	E. MagVar 21
"CK"	243 Kc	55* 46.94'N	155* 41.41'W
	To	From	Range 100nm
Leg1	165M	345M
Leg2	201M	21M
Leg3	345M	165M
Leg4	61M	241M
Return to Index

CORDOVA RADIO		Radio Range	E. MagVar 25.7
"KA"	363 Kc	60* 23.65'N	146* 5.41'W
	To	From	Range 100nm
Leg1	180M	0M
Leg2	260M	80M
Leg3	0M	180M
Leg4	80M	260M
Return to Index

CORDOVA RANGE		Radio Range	E. MagVar 26.1
"FU"	408 Kc	60* 28.28'N	145* 22.87'W
	To	From	Range 100nm
Leg1	177M	357M
Leg2	267M	87M
Leg3	357M	177M
Leg4	87M	267M
Return to Index

DUTCH		Radio Range	E. MagVar 13.8
"SY"	209 Kc	53* 54.26'N	166* 34'W
	To	From	Range 100nm
Leg1	181M	1M
Leg2	271M	91M
Leg3	1M	181M
Leg4	91M	271M
Return to Index

FAIRBANKS		Radio Range	E. MagVar 27.6
"FAI"	357 Kc	64* 48.54'N	147* 39'W
	To	From	Range 100nm
Leg1	125M	305M
Leg2	271M	91M
Leg3	353M	173M
Leg4	66M	246M
Return to Index

FAREWELL		Radio Range	E. MagVar 23.4
"LU"	206 Kc	62* 29.98'N	153* 58.11'W
	To	From	Range 100nm
Leg1	172M	352M
Leg2	262M	82M
Leg3	352M	172M
Leg4	82M	262M
Return to Index

GALENA		Radio Range	E. MagVar 22.5
"GQ"	332 Kc	64* 44.22'N	156* 47.64'W
	To	From	Range 100nm
Leg1	235M	55M
Leg2	337M	157M
Leg3	67M	247M
Leg4	150M	330M
Return to Index

GLENN		Radio Range	E. MagVar 13
"RS"	284 Kc	53* 20.94'N	167* 56.81'W
	To	From	Range 100nm
Leg1	206M	26M
Leg2	296M	116M
Leg3	26M	206M
Leg4	116M	296M
Return to Index

GULKANA		Radio Range	E. MagVar 27.2
"XV"	249 Kc	62* 11.72'N	145* 28.08'W
	To	From	Range 100nm
Leg1	210M	30M
Leg2	323M	143M
Leg3	53M	233M
Leg4	143M	323M
Return to Index

GUSTAVUS		Radio Range	E. MagVar 27.2
"GS"	220 Kc	58* 23.08'N	135* 30.38'W
	To	From	Range 100nm
Leg1	155M	335M
Leg2	246M	66M
Leg3	333M	153M
Leg4	66M	246M
Return to Index

ILIAMNA		Radio Range	E. MagVar 21.6
"JP"	412 Kc	59* 45.02'N	154* 48.75'W
	To	From	Range 100nm
Leg1	161M	341M
Leg2	219M	39M
Leg3	305M	125M
Leg4	89M	269M
Return to Index

KENAI		Radio Range	E. MagVar 24
"JS"	347 Kc	60* 35.4'N	151* 15.96'W
	To	From	Range 100nm
Leg1	185M	5M
Leg2	275M	95M
Leg3	5M	185M
Leg4	95M	275M
Return to Index

KISKA		Radio Range	E. MagVar 4.1
"GKI"	379 Kc	51* 59.08'N	-177* -32.33'W
	To	From	Range 100nm
Leg1	247M	67M
Leg2	337M	157M
Leg3	67M	247M
Leg4	157M	337M
Return to Index

KODIAK		Radio Range	E. MagVar 22.3
"NHB"	242 Kc	57* 46.05'N	152* 20.47'W
	To	From	Range 100nm
Leg1	233M	53M
Leg2	336M	156M
Leg3	55M	235M
Leg4	156M	336M
Return to Index

MCGRATH		Radio Range	E. MagVar 22.3
"WH"	351 Kc	62* 56.01'N	155* 34.2'W
	To	From	Range 100nm
Leg1	216M	36M
Leg2	277M	97M
Leg3	36M	216M
Leg4	97M	277M
Return to Index

MINCHUMINA		Radio Range	E. MagVar 25
"IQ"	228 Kc	63* 53.42'N	152* 21.67'W
	To	From	Range 100nm
Leg1	215M	35M
Leg2	305M	125M
Leg3	35M	215M
Leg4	125M	305M
Return to Index

MOSES POINT		Radio Range	E. MagVar 19.2
"HG"	264 Kc	64* 42.4'N	162* 5.87'W
	To	From	Range 100nm
Leg1	246M	66M
Leg2	331M	151M
Leg3	62M	242M
Leg4	151M	331M
Return to Index
